Metal Optical Fiber Adapters , Optic Bare Fiber Adapter ST FC LC ST Round

উৎপত্তি স্থল চীন
পরিচিতিমুলক নাম YINGDA
সাক্ষ্যদান ISO,SGS
মডেল নম্বার ADB-ST-RD
ন্যূনতম চাহিদার পরিমাণ 100 PCS
মূল্য Negotiable
প্যাকেজিং বিবরণ 1 pc / bag or 10 pc/ blister box
ডেলিভারি সময় 3 days
পরিশোধের শর্ত T/T or western Union
যোগানের ক্ষমতা 50,000pcs per month

বিনামূল্যে নমুনা এবং কুপন জন্য আমার সাথে যোগাযোগ করুন.

হোয়াটসঅ্যাপ:0086 18588475571

wechat: 0086 18588475571

স্কাইপ: sales10@aixton.com

আপনার কোন উদ্বেগ থাকলে, আমরা 24-ঘন্টা অনলাইন সহায়তা প্রদান করি।

x
পণ্যের বিবরণ
material Metal, Plastic house color black
shape round type bare fiber adaptor
weight 12g Fiber type single-mode
polish methold UPC insertion loss <0.2dB
লক্ষণীয় করা

fiber optic coupler

,

bare fiber adapter

একটি বার্তা রেখে যান
পণ্যের বর্ণনা

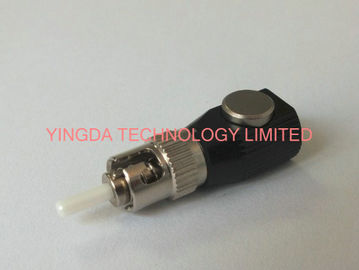

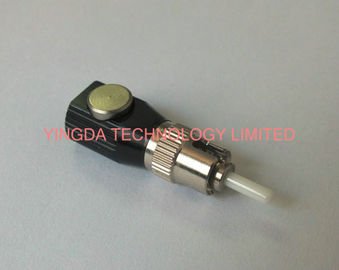

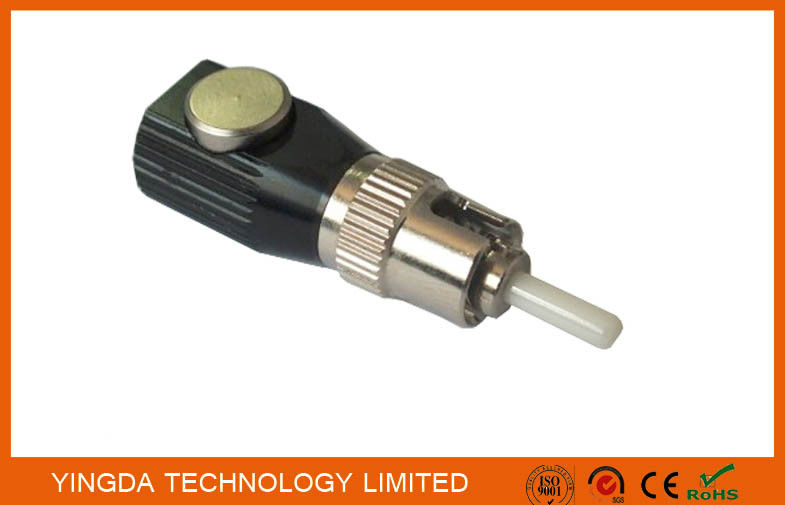

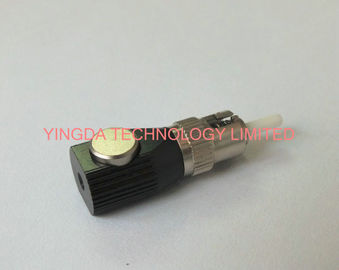

Optical Fiber Adapter ST, Optic Bare Fiber Adapter ST FC LC ST Round Metal





The optical fiber is connected through the opening sleeve inside adapter, in order to ensure the

highest performance of optical fiber jumper. In order to fixed on various panel, a variety of fixed

flange adapters design and manufactured.



Hybrid adapter can connected different types of fiber optic patch cord, also provide APC end face

connection, duplex or multi-fiber high density installation.



Bare fiber adapter is a kind of professional auxiliary tool for optical fiber test, especially for fiber

emergency repair and temporary connection.





Model: FC/PC, SC/PC,ST/PC,LC/PC available





Main characteristics:

  • Low insertion loss
  • Good repeatability
  • Easy to use
  • Length: 40MM, Diameter: 13MM
  • Temperature cycle test:-40-+80 °C
  • Interchangeability < 0.2dB
  • Convenient operation, can be observed by the naked eye
  • Reusable, single mode / multi-mode fiber can be used
  • Low insertion loss,  good reflecting inhibition



Application

  1. Bare fiber connector device production
  2. Experiment fiber test
  3. Testing fiber on the reel
  4. Optical fiber through connection test
  5. Two-way communication during optical-fiber cable installation and maintenance
  6. First-aid repair,temporary connection and testing on optical fiber project.



Specification



Shape

Square / Round

Connector

FC/PC, SC/PC, ST/PC, LC/PC

Applicable fiber

SM & MM

Ferrule diameter

123-127 um

Ferrule outder diameter

2.499mm 1.249mm

Cable diameter

250um & 900um

Insertion Loss

≤0.20dB

Repeat ability

<0.2dB

Tensile strength

100g

Plug time

 >1000 times

Operating Temperature

-40 ~+85℃

Size

Length:40mm, diameter:30mm



How to use:



1. Strip the fiber coating layer (15-20mm) and cleaned with alcohol;

2. Press down the optical fiber adapter switch, push the fiber along the guiding hole slowly until out

    of the ceramic ferrule (5-6mm),then relax and open ;

3. Use ruby knife delimit fiber bottom gently so as to expose part of fiber, break off the fiber.





Bare Fiber Adapter Round Package: Blister Box FC SC LC ST is the same
