12 Cores FTTH Mini Fiber Optic Termination Box For Cable Fusion Splicing

উৎপত্তি স্থল চীন
পরিচিতিমুলক নাম YINGDA
সাক্ষ্যদান ISO SGS
মডেল নম্বার FTB002
ন্যূনতম চাহিদার পরিমাণ 100PCS
মূল্য NEGOTIABLE
প্যাকেজিং বিবরণ 1 pc per box, 48 pcs per carton shipping box
ডেলিভারি সময় 5-8 working days
পরিশোধের শর্ত T/T, Western Union, MoneyGram

বিনামূল্যে নমুনা এবং কুপন জন্য আমার সাথে যোগাযোগ করুন.

হোয়াটসঅ্যাপ:0086 18588475571

wechat: 0086 18588475571

স্কাইপ: sales10@aixton.com

আপনার কোন উদ্বেগ থাকলে, আমরা 24-ঘন্টা অনলাইন সহায়তা প্রদান করি।

x
পণ্যের বিবরণ
ধারণক্ষমতা 12 ফাইবার গুচ্ছ কেবল ইনপোর্ট 2 পিসি
মাত্রা 198 * 112 * 45 মিমি ইনপুট তারের ব্যাস 16 এমএম
পাদান উচ্চ শক্তি ইঞ্জিনিয়ার প্লাস্টিকের পিসি রঙ ধূসর
আবেদন FTTH এফটিটিবি অভ্যন্তরীণ ব্যবহার স্প্লাইস ট্রে সর্বোচ্চ 2 পিসি, প্রতিটি 6 তন্তু
বিশেষ আন কাটা তারের বাক্স মাধ্যমে যেতে আউটপুট ব্যাস পিগটেলগুলির জন্য 12 টি ছোট বন্দর
লক্ষণীয় করা

fiber optic terminal box

,

fiber optic distribution box

একটি বার্তা রেখে যান
পণ্যের বর্ণনা

12 Cores FTTH Mini Fiber Optic Termination Box For Cable Fusion Splicing





Model: FTB002

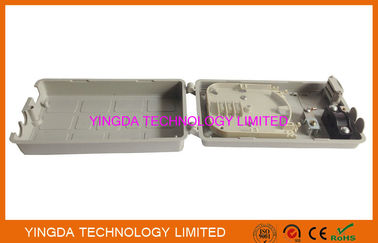

12 Cores FTTH Mini Fiber Optic Termination Box For Cable Fusion Splicing 0

FTB002 termination box suits for jointing fibers with fiber pigtails and it protects fiber optic splices and helps to distribute. The termination box is either a wall-mounting type or desktop, which is mainly used in telecommunication equipment room and network equipment.



Applicable fiber cables



  • FTB002 is applicable for splicing 2 pieces of fiber cable with max. Diameter φ16mm.



Features



1. Structure of FTB002 is innovative, designed in up-down bisection. Its installation is simple. By

un-tightening one piece of fixing nut, it succeeds in opening the housing and it allows fiber cable

and fiber pigtail to pass in and out in single side.



2. The housing of FTB002 is made of high strength poly carbonate plastic materials, which has mechanical strength, therefore it is reliable and long-lasting. It is nice shape and beautiful appearance.



3. The tray is designed in SLIDE-IN-LOCK and its opening angle is above 90°. Therefore it is easy for

installation and maintenance. The curved diameter meets with the international standard. The capacity

of tray is 6-12cores.



4. The elastic material is used to fix fiber pigtail. When the end of fiber pigtail can not be determined.

(it is not used for the moment), it is possible to wind fiber pigtail into clasp.whenever it is needed, the active connector could be installed outside of the housing. Therefore it can connect termination

equipment without connecting adapters.



Specification



Model

No of entry/

exit ports

Splice

trays

Max. capacity

Dimension

(LxWxH)

Cable diameter:
FTB-002 2 cable ports + 12 small ports for pigtails

1*12F/

2*6F

12 fibers 198*112*45mm φ16mm



Main points during operation



1. While stripping fiber cable reserve reinforced core with 35mm length.(it is used for the distance

from fixing point of fiber cable to fixing device of reinforced core)



2. Reserve fiver with protective coat in 100mm or so (it is used for the distance from fixting point

of fiber cable to fixing point of FOST)



3. After splicing, the initial round of spliced fiber is proposed to put along the inner edge of the tray

and the rest bending as round with diameter not less than φ80mm inside the tray.



More pictures

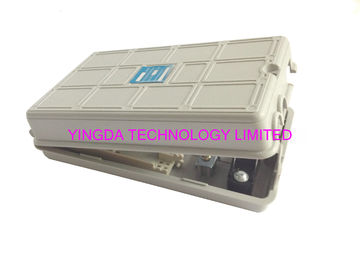

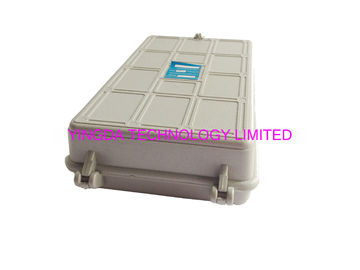

12 Cores FTTH Mini Fiber Optic Termination Box For Cable Fusion Splicing 112 Cores FTTH Mini Fiber Optic Termination Box For Cable Fusion Splicing 2

                        front cable ports view                                                back side view

12 Cores FTTH Mini Fiber Optic Termination Box For Cable Fusion Splicing 312 Cores FTTH Mini Fiber Optic Termination Box For Cable Fusion Splicing 4

    FTTH terminal box with all accessories                termination box splice tray 6 fibers

12 Cores FTTH Mini Fiber Optic Termination Box For Cable Fusion Splicing 512 Cores FTTH Mini Fiber Optic Termination Box For Cable Fusion Splicing 6

fiber optic splice box with english user manual                     pack box: 1 piece/box single package





List of accessories



Name Unit Quantity
Heat shrinkable protective sleeve Pc Configuration as per capacity
Nylon tie Pc Configuration as per capacity
Labeling paper Pc 1
Plastic shrinkable tube Pc 4
Bolts Pc 4
Manual Pc 1
