Single Mode FTTH Drop Cable , FRP Non - Metallic Strength 2 Core Fiber Optic Cable

উৎপত্তি স্থল চীন
পরিচিতিমুলক নাম YINGDA
সাক্ষ্যদান ISO
মডেল নম্বার GJXFH-02
ন্যূনতম চাহিদার পরিমাণ 20km
মূল্য Negotiable

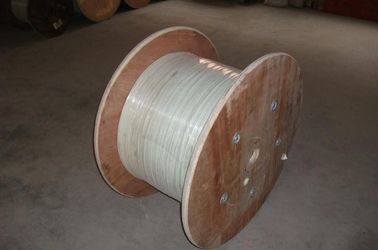

প্যাকেজিং বিবরণ 2km / reel or cusotmized
ডেলিভারি সময় 5 working days
পরিশোধের শর্ত T/T or western Union
যোগানের ক্ষমতা 500km / month

বিনামূল্যে নমুনা এবং কুপন জন্য আমার সাথে যোগাযোগ করুন.

হোয়াটসঅ্যাপ:0086 18588475571

wechat: 0086 18588475571

স্কাইপ: sales10@aixton.com

আপনার কোন উদ্বেগ থাকলে, আমরা 24-ঘন্টা অনলাইন সহায়তা প্রদান করি।

x
পণ্যের বিবরণ
fiber count 2 Cores strength member FRP non-metallic
pack 2KM / drum(reel) or 3km/ drum, 4km/drum Name butterfly figure 8 indoor drop cable
cable color white cable shape square / flat
Fiber type G657A1 G657A2 G652D Package wooden drum and carton box
outer jacket LSZH
লক্ষণীয় করা

ftth fiber optic cable

,

fiber optic drop cable

একটি বার্তা রেখে যান
পণ্যের বর্ণনা

FTTH Drop Cable Indoor Single Mode 2 Cores Fiber Optic Cable FRP Non-Metallic Strength





Description



Butterfly fiber optic cable is a cable designed specifically for FTTH which have both indoor and

outdoor optical cable features. It adopts double reinforcement figure 8 structure, can directly drop

into the building household from the fiber optic splice closure. Particularly it suitable to use together

with fast connector(field installation connector), mechanical splice; also it can be separate the

suspended fiber core and then splice with others.

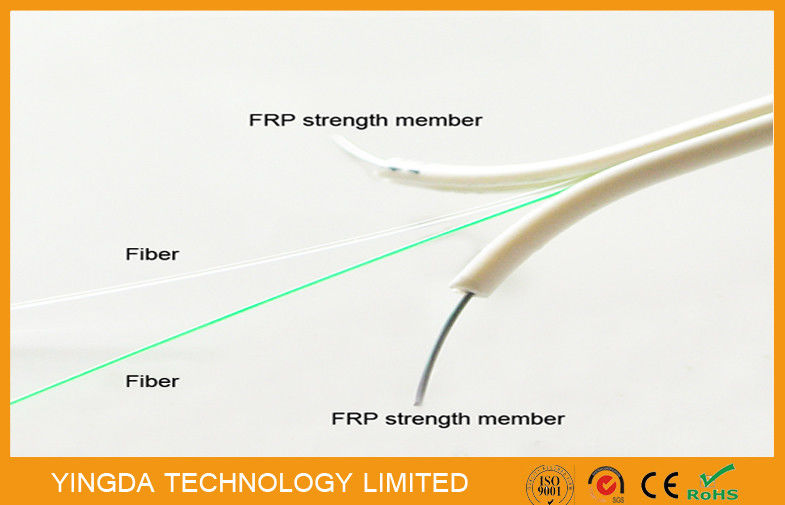

Cable structure

 Single Mode FTTH Drop Cable , FRP Non - Metallic Strength 2 Core Fiber Optic Cable 0



Features

  • Special high bending radius fiber, provides wider bandwidth, enhance network transmission
  • characteristics, easily reached 100M /S, realize broadband, television and telephone triple
  • play.
  • Two parallel reinforcement members ensure fiber optic cable with good compression perform
  • ance, protect the fiber.
  • Simple structure, light weight, strong practicability.
  • The unique groove design, easy separation, convenient connection, simplify the installation
  • and maintenance.
  • Low smoke halogen-free flame retardant sheath, environmental protection
  • Optical properties of <0.34dB: 1310nm, 1550nm<0.21dB



Technical parameters



Cable code

Fiber

count

Cable

size

(mm)

Cable

weight

(kg/km)

Tensile(N)

Crush

(N/100mm)

Crush

resistance

Temperature

(°C)

Long

term

Short

term

Long

term

Short

 term

Dynamic

Static

GJXFH-01

1

1.6*2.0

5

40

80

500

1000

30D

15D

-20~+60

GJXFH-01

1

2.0*3.0

8

40

80

500

1000

30D

15D

GJXFH-02

2

2.0*3.0

8.5

40

0

500

1000

30D

15D

GJXFH-04

4

2.0*3.0

9

40

80

500

1000

30D

15D

GJXFH-06

6

3.0*4.0

14

45

85

500

1000

30D

15D

GJXFH-08

8

3.0*4.0

16

50

90

500

1000

30D

15D

GJXFH-12

12

3.0*4.0

19

55

95

500

1000

30D

15D



Fiber type

G652D

50/125

62.5/125

G657A1

G657A2

OM3-150

OM3-300

OM4

Jacket material

PE

LSZH

Features:

Special low beng sensitivity fiber provodes high bandwidth

Two parallel FRP strength member ensures good performance of

crush resistance to protect the fiber

Simplex structure, light weight,high practicability

Low smoke zero halogen and flame retardant sheath



Single Mode FTTH Drop Cable , FRP Non - Metallic Strength 2 Core Fiber Optic Cable 1



Single Mode FTTH Drop Cable , FRP Non - Metallic Strength 2 Core Fiber Optic Cable 2Single Mode FTTH Drop Cable , FRP Non - Metallic Strength 2 Core Fiber Optic Cable 3Single Mode FTTH Drop Cable , FRP Non - Metallic Strength 2 Core Fiber Optic Cable 4
