FITL SC / PC Fiber Optic Connector Attenuator 3dB 5dB 10dB For Network Testing

উৎপত্তি স্থল চীন
পরিচিতিমুলক নাম YINGDA
সাক্ষ্যদান ISO
মডেল নম্বার ATTN-SCS-01-B03
ন্যূনতম চাহিদার পরিমাণ 100PCS
মূল্য Negotiable
প্যাকেজিং বিবরণ 50 pc / plastic blister box or customized
ডেলিভারি সময় 3-5 days
পরিশোধের শর্ত T/T or western Union
যোগানের ক্ষমতা 50,000pcs per month

বিনামূল্যে নমুনা এবং কুপন জন্য আমার সাথে যোগাযোগ করুন.

হোয়াটসঅ্যাপ:0086 18588475571

wechat: 0086 18588475571

স্কাইপ: sales10@aixton.com

আপনার কোন উদ্বেগ থাকলে, আমরা 24-ঘন্টা অনলাইন সহায়তা প্রদান করি।

x
পণ্যের বিবরণ
Attenuation 5 dB wavelength range 1260-16500nm
test wavelength 1310nm, 1550nm material plastic PBT/ABS
Additional loss 0.2dB Working temperature -40~+85 (℃)
Fiber optic type single mode 9/125um standard GR910, IEC
connector SC / PC connector color blue
লক্ষণীয় করা

build out attenuator

,

optical fiber attenuator

একটি বার্তা রেখে যান
পণ্যের বর্ণনা

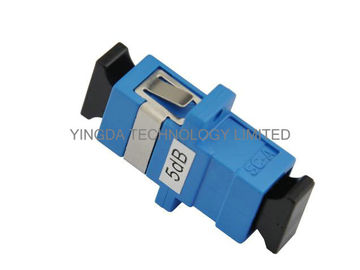

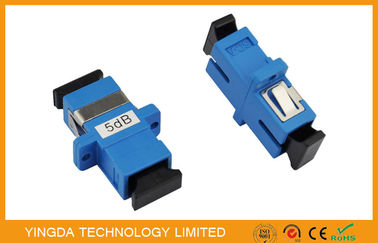

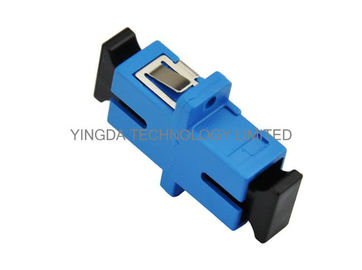

SC / PC Fiber Optic Connector Attenuator 3dB 5dB 10dB, SC Adapter Attenuator 5dB





Fiber optic attenuators are used in the fiber optic communications to reduce the optical fiber power

at a certain level, the most commonly used type is female to male plug type fiber optic attenuator,

it has the optical fiber connector at one side and the other side is a female type fiber optic adapter,

fiber optic attenuator name is based on the connector type and the attenuation level.



SC/PC 5dB fiber optic attenuator means this attenuator uses SC fiber optic connector and it can

reduce the optical fiber power level by 7dB. Commonly used attenuation range is from 1dB to 25dB,

and it is also available to provid upto 30dB.



FEATURES

  • Wavelength Independent
  • Low ripple
  • Excellent environmental stability
  • Design certified to more than 200mW continuous
  • Power handling capacity with no degradation in performances
  • Backreflection performance to < -55dB available
  • for UPC and < -60dB available for APC
  • Polarization insensitive



APPLICATIONS

  1. Long Haul Telecommunication
  2. Fiber in the Loop (FITL)
  3. Local Area Networks (LAN)
  4. Cable TV & Video distribution
  5. Passive Optical Networks
  6. Network Testing



Specification



Parameter

Condition

Value [dB]

Min

Typical

Max

Attenuation





1 ~ 10







15, 20



Return Loss

SPC

> 40

> 45



UPC

> 50

> 55



APC

> 60

> 65



Attenuation Accuracy

1 ~ 10



±0.5



15 ~ 20



±1.0



Operating Wavelength [nm]

1310 / 1550

Operating Temperature

-40℃ ~ +85℃

Humidity

75℃, RH 95%
