SC FC LC MU Fixed In - line Attenuator Multi Mode 50 / 125 µm SM 1 Meter Range 1 ~ 40dB
বিনামূল্যে নমুনা এবং কুপন জন্য আমার সাথে যোগাযোগ করুন.
হোয়াটসঅ্যাপ:0086 18588475571
wechat: 0086 18588475571
স্কাইপ: sales10@aixton.com
আপনার কোন উদ্বেগ থাকলে, আমরা 24-ঘন্টা অনলাইন সহায়তা প্রদান করি।
xAttenuation | 0- -40 dB fixed | test wavelength | 1310nm, 1550nm ,850nm |
---|---|---|---|
type | inline fixed attenuator | Working temperature | -40~+85 (℃) |
Fiber optic type | single-mode,multimode | connector type | SC ST FC LC MU all ok |
polish | UPC APC PC | return loss | 55dB |
connector plug time | 1000 times | package | 1pc in a blister box |
লক্ষণীয় করা | build out attenuator,inline optical attenuator |

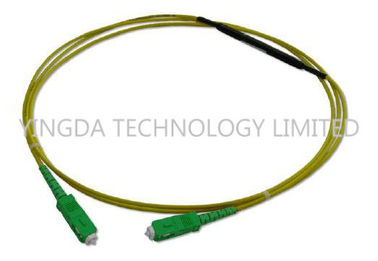

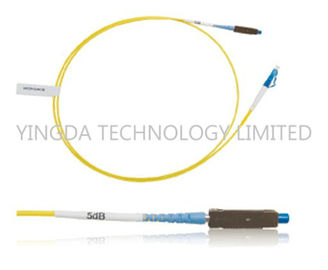

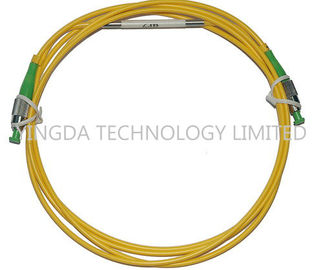

SC FC LC MU Inline Attenuator, Fixed In-line Attenuator SM 1Meter Range:1~40dB
InLine patchcord attenuators are applied when standard plug attenuators cannot be used (e.g. not
enough space in a closure) or when it is needed to attenuate an optical link by using not standard
connector type. Protection of a special attenuation part is made by rugged protection sleeve, which
ensures high durability and stability. InLine patchcord attenuators offered by Sylex are available from
cable with outer diameter of 2,8 mm for better identification we can offer InLine patchcord attenuators
in 4 different colours: black, white, green and red.
Features
- Optimized ion doped fiber technology
- Various fixed attenuation available
- Superior durability
- Low polarization dependence
- Superior spectral flatness and very low ripples
- Withstands high optical power up to 1W
- Telecordia std(GR-910-CORE) conformed
Application:
- Telecommunication Network
- CATV Network
- Data communication
- Instrumentation
- Local Area Network
- Fiber Optic Access Network
Specifications
Fiber Type Items |
Single Mode (9/125µm) |
Multi Mode(50/125µm, 62.5/125µm) |
|
Attenuation Value(dB) |
1 to30 |
1 to 25 |
|
Operating Wavelength |
1260 to1620 |
850 /1300 |
|
Return Loss(dB) |
UPC |
≥55 |
- |
APC |
≥65 |
- |
|
Attenuation Tolerance(dB) |
±0.5 |
||
Maximum power capability(W) |
1 |
||
Operating Temperature |
-10℃~+75℃ |
||
Storage Temperature |
-40℃~+85℃ |
