Corrosion Resistance Optical Fibre Patch Panel Pull - push Type , Termination Box

উৎপত্তি স্থল চীন
পরিচিতিমুলক নাম YINGDA
সাক্ষ্যদান ISO SGS ROHS
মডেল নম্বার GPSM-SC12
ন্যূনতম চাহিদার পরিমাণ 100 pcs
মূল্য negotiable
প্যাকেজিং বিবরণ 1pc / box, 5 pcs / carton box
ডেলিভারি সময় 5-8days after payment
যোগানের ক্ষমতা 500,000 pcs per month

বিনামূল্যে নমুনা এবং কুপন জন্য আমার সাথে যোগাযোগ করুন.

হোয়াটসঅ্যাপ:0086 18588475571

wechat: 0086 18588475571

স্কাইপ: sales10@aixton.com

আপনার কোন উদ্বেগ থাকলে, আমরা 24-ঘন্টা অনলাইন সহায়তা প্রদান করি।

x
পণ্যের বিবরণ
material cold rolled steel color black
capacity 12 fibers adapter SC simplex adapter
cable ports 4 pcs application FTTH FTTX FTTB ODN PON network
dimension 430*250*1U thickness 1.0mm
লক্ষণীয় করা

optical distribution frame

,

sliding patch panel

একটি বার্তা রেখে যান
পণ্যের বর্ণনা

SC Connector 12 Cores Fiber Optic Patch Panel, Optical Distribution Frame 12 Ports





Fiber optic patch panel are the auxiliary equipment for terminal wiring in optical fiber transmission

communication network, which is suitable for indoor optical cable splice directly and branch connection,

 and protective the fiber.



Material properties

Fiber Optic Patch panel materials is corrosion resistancestable physical and chemical properties;

 all material must be compatible, and is compatible with optical cable sheath and wiring pigtail sheath.

To prevent corrosion and other electrical damage, these materials must be compatible with the other

equipment used in the patch panel



1.  If the patch panel use engineering plastics, its combustion performance shall be in accordance

 with A GB/T5169.7 test, the test last for 30s.

2. optical fiber connector enhancement protector use materials and hot melt temperature filler shall

be not less than 120 °C, thermal softening temperature shall be not less than 90 °C, can be used in

a 25 ~+40°C temperature.

3all materials should be non-toxic, non corrosive, on human health and other equipment element

side effects.

The appearance shall complete shape, no burr, no bubbles, no cracks and voids, warping, impurity

defects. All the background color should be uniformly continuous. Beautiful appearance and

convenient construction, low attenuation loss, reasonable structure, reinforced core is fixed in

the terminal box, the sheath has ground wire, suitable for fiber optic ribbon cable and indoor cable.

Unique design,19 inch rack or wall mount.





Features

  • Applicable in the termination and 19'' standard structure,
  • Metal sliding design
  • rack mount in optical distribution frame ODF
  • Suitable for FC,SC,ST,LC,E2000 adapters
  • Cold rolled steel sheet, with electrostatic spraying
  • Box size: 430*250*1U available,for cost save.



Specification



Type

Dimension

(mm)

Max capacity

(core)

Carton size

(mm)

Qty/

carton

(pc)

G.w

(kg)

GPSM-1U-SC12

430*300*1U

12

485*420*350

5

29

GPSM-1U-FC24

24

485*420*350

5

29

GPSM-1U-2SC24

48

485*420*350

5

29

GPSM-2U-FC48

430*300*2U

48

500*355*550

4

26.5

GPSM-4U

130*300*4U

192

500*350*540

1

18.9



Environmental requirements:



Not suitable outdoor use, if need to use, should take protective measures.



Working temperature

 -25 to +40 °C

Storage temperature

-25 to +55 °C

Relative humidity

≤85% (30°C)

Atmospheric pressure

70 ~ 106kPa

Service life

20 years



Mechanical properties



Tensile strength: should withstand axial tensile strength not less than 500N between cable terminal

box and the cable, and not less than 5N between wiring pigtail and terminal box.



Compression test: cable terminal box each should be able to withstand the vertical static pressure

not less than 200N.



Twist test : cable terminal box should be able to withstand the torsion angle.





Electrical properties

  1. Fiber optic cable box metal component and cable metal strengthening core, cable metal
  2.  components and the ground insulation resistance
  3. insulation resistance:
  4. should be no less than 2*104M ohm, test voltage:500V (DC).
  5.  voltage strength:
  6. no breakdown, no arc phenomenon at 15Kv DC under 1min, no breakdown, no arc
  7. phenomenon.

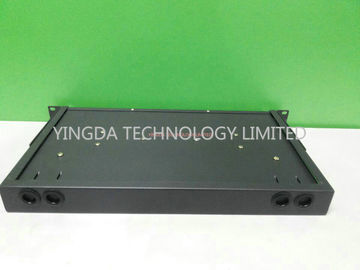

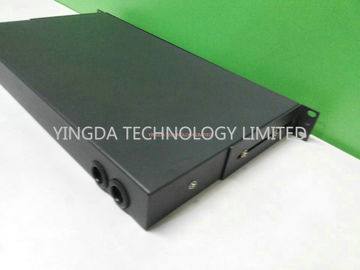

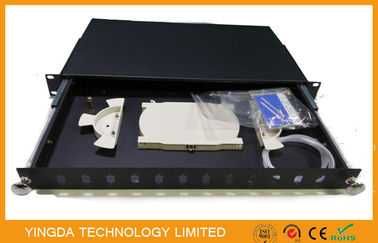

Corrosion Resistance Optical Fibre Patch Panel Pull - push Type , Termination Box 0Corrosion Resistance Optical Fibre Patch Panel Pull - push Type , Termination Box 1Corrosion Resistance Optical Fibre Patch Panel Pull - push Type , Termination Box 2Corrosion Resistance Optical Fibre Patch Panel Pull - push Type , Termination Box 3
