Custom Fully Load 4 Core SC LC Fiber Optic Termination Box For Local Area Networks

উৎপত্তি স্থল চীন
পরিচিতিমুলক নাম YINGDA
সাক্ষ্যদান ISO SGS ROHS
মডেল নম্বার WTB-S04
ন্যূনতম চাহিদার পরিমাণ 100 pcs
মূল্য negotiable
প্যাকেজিং বিবরণ 1pc / box, 10pcs / carton box
ডেলিভারি সময় 5days after payment
যোগানের ক্ষমতা 500,000 pcs per month

বিনামূল্যে নমুনা এবং কুপন জন্য আমার সাথে যোগাযোগ করুন.

হোয়াটসঅ্যাপ:0086 18588475571

wechat: 0086 18588475571

স্কাইপ: sales10@aixton.com

আপনার কোন উদ্বেগ থাকলে, আমরা 24-ঘন্টা অনলাইন সহায়তা প্রদান করি।

x
পণ্যের বিবরণ
material metal color black
max capacity 4 fibers adapter SC/LC
cable ports 2 Pcs application FTTH FTTX FTTB ODN PON network
dimension 16*10*3.5cm thickness 0.6, 0.8, 1.0mm
লক্ষণীয় করা

fiber optic terminal box

,

fiber optic junction box

একটি বার্তা রেখে যান
পণ্যের বর্ণনা

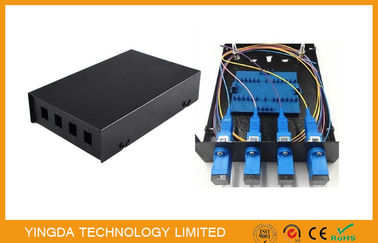

Fully Load 4 Core SC / LC Fiber Optic Termination Box , 4 Port Wall Mount Box





Description



Fiber Optic Cable terminal box is use for connecting small capacity cable with the terminal.

It has the function of fixing fiber optic cable and welding.



Features

  1. Electrostatic spraying, beautiful appearance, easy to operate.
  2. Equip with cable fixed device, splice tray, thread ring.
  3. Splice tray use superposition structure,max capacity 96core,ribbon fiber up to144cores.
  4. It can insulate the cable metal parts and the terminal box shell and with grounding device
  5. Have enough space for terminal placement and remaining fiber storage.
  6. Size is customize



Specification



Model

Capacity

/ core

Size

/ mm

Remark

WTB-S04

4

190*100*35

  1. White/Black;
  2. Box body for cold-rolled sheet,
  3. surface electrostatic spraying,
  4. 4/8 /12/24 adapter exports,
  5. suitable for FC, SC, ST

WTB-S08

8

260*130*40

WTB-S12

12

268*138*46

WTB-S24

24

265*140*60

WTB-S8P

265*140*45

Plastic SC adapter output 8ports





Technical parameters



Environment temperature

-25~+45°C

Relative humidity:

≤85%( 30°C)

Atmosphere pressure

70-106KPa

Insulated Resistance

≥2×10MΩ/500V (DC)

Intensity:

≤15KV(DC)/1min no spark-over and no flying arc

Bending radium

≥40mm



ApplicatIon

  • Telecommunications
  • Local Area Networks
  •  FTTH deployment
  • CATV

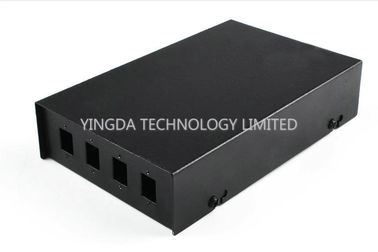

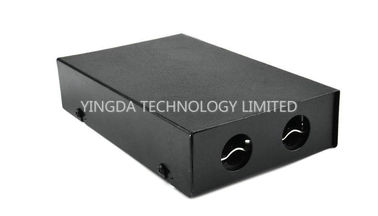

Custom Fully Load 4 Core SC LC Fiber Optic Termination Box For Local Area Networks 0Custom Fully Load 4 Core SC LC Fiber Optic Termination Box For Local Area Networks 1Custom Fully Load 4 Core SC LC Fiber Optic Termination Box For Local Area Networks 2



Other types:



Custom Fully Load 4 Core SC LC Fiber Optic Termination Box For Local Area Networks 3Custom Fully Load 4 Core SC LC Fiber Optic Termination Box For Local Area Networks 4
