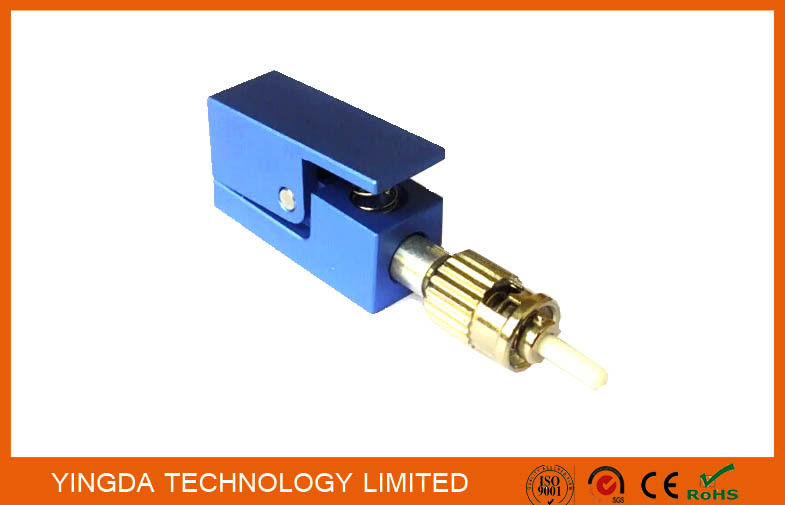

Blue Fiber Test ST / PC Bare Fiber Optic Adapter , ST Fiber Adapter Singlemode
বিনামূল্যে নমুনা এবং কুপন জন্য আমার সাথে যোগাযোগ করুন.
হোয়াটসঅ্যাপ:0086 18588475571
wechat: 0086 18588475571
স্কাইপ: sales10@aixton.com
আপনার কোন উদ্বেগ থাকলে, আমরা 24-ঘন্টা অনলাইন সহায়তা প্রদান করি।
xmaterial | Metal, Plastic | house color | blue, black, gray |
---|---|---|---|
shape | square | type | bare fiber optic adapter |
weight | 12g | Fiber type | single-mode,multimode |
polish methold | UPC | insertion loss | <0.2dB |
লক্ষণীয় করা | fiber optic coupler,fiber optic adaptor |
Blue Fiber Test ST / PC Bare Fiber Optic Adapter, ST Fiber Adapter Singlemode
The optical fiber is connected through the opening sleeve inside adapter, in order to ensure the
highest performance of optical fiber jumper. In order to fixed on various panel, a variety of fixed
flange adapters design and manufactured.
Hybrid adapter can connected different types of fiber optic patch cord, also provide APC end face
connection, duplex or multi-fiber high density installation.
Bare fiber adapter is a kind of professional auxiliary tool for optical fiber test, especially for fiber
emergency repair and temporary connection.
Model: FC/PC, SC/PC,ST/PC,LC/PC available
Main characteristics:
- Low insertion loss
- Good repeatability
- Easy to use
- Length: 40MM, Diameter: 13MM
- Temperature cycle test:-40-+80 °C
- Interchangeability < 0.2dB
- Convenient operation, can be observed by the naked eye
- Reusable, single mode / multi-mode fiber can be used
- Low insertion loss, good reflecting inhibition
Application
- Bare fiber connector device production
- Experiment fiber test
How to use:
1. Strip the fiber coating layer (15-20mm) and cleaned with alcohol;
2. Press down the optical fiber adapter switch, push the fiber along the guiding hole slowly until out
of the ceramic ferrule (5-6mm),then relax and open ;
3. Use ruby knife delimit fiber bottom gently so as to expose part of fiber, break off the fiber.
Specification
Shape |
Square / Round |
Connector |
FC/PC, SC/PC, ST/PC, LC/PC |
Applicable fiber |
SM & MM |
Ferrule diameter |
123-127 um |
Ferrule outder diameter |
2.499mm 1.249mm |
Cable diameter |
250um & 900um |
Insertion Loss |
≤0.20dB |
Repeat ability |
<0.2dB |
Tensile strength |
100g |
Plug time |
>1000 times |
Operating Temperature |
-40 ~+85℃ |
Size |
Length:40mm, diameter:30mm |

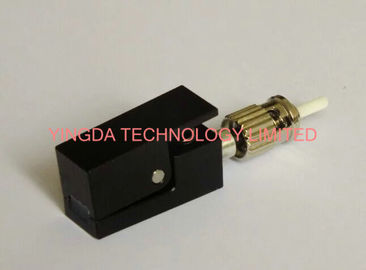

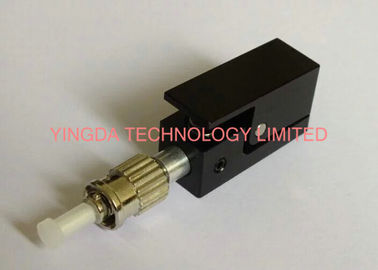

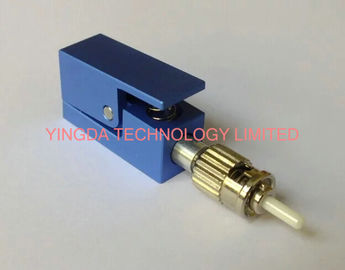

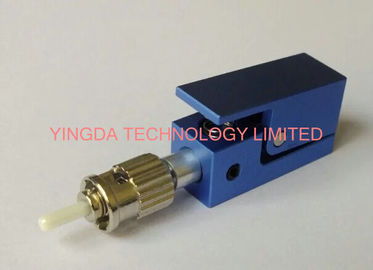

ST Fiber Optic Adapter Bare Fiber Square Type:
