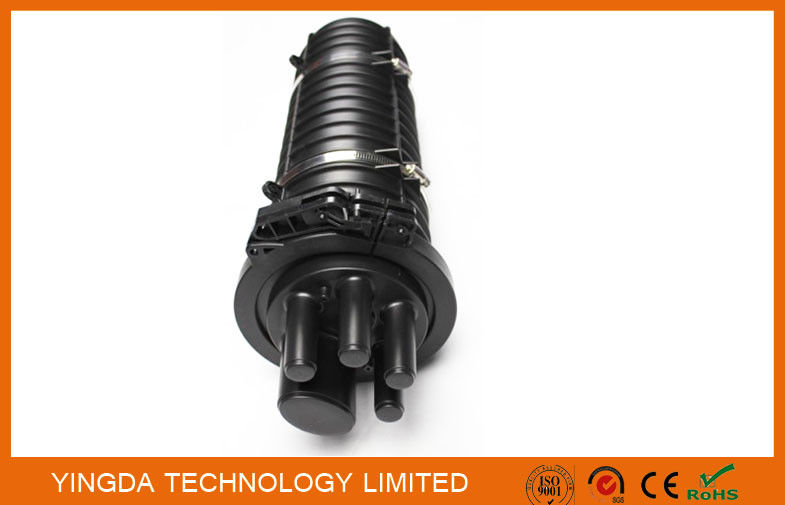

Dome Fiber Optic Splice Closure

উৎপত্তি স্থল চীন
পরিচিতিমুলক নাম YINGDA
সাক্ষ্যদান ISO,SGS
মডেল নম্বার JB102
ন্যূনতম চাহিদার পরিমাণ 100 PCS
মূল্য Negotiable
প্যাকেজিং বিবরণ 1pc / box, 6 pcs/ carton box
ডেলিভারি সময় 5days after pay
পরিশোধের শর্ত T/T or western Union
যোগানের ক্ষমতা 50,000pcs per month

বিনামূল্যে নমুনা এবং কুপন জন্য আমার সাথে যোগাযোগ করুন.

হোয়াটসঅ্যাপ:0086 18588475571

wechat: 0086 18588475571

স্কাইপ: sales10@aixton.com

আপনার কোন উদ্বেগ থাকলে, আমরা 24-ঘন্টা অনলাইন সহায়তা প্রদান করি।

x
পণ্যের বিবরণ
shape Dome / vertical max capacity 96 fibers
cable port 1 oval + 4 round port cable diameter Φ10mm~Φ25 mm
material PP body + ABS tray splice tray qty max. 4 pcs
closure dimension 540x180 mm weight 3.5 kgs
carton qty 6 pcs carton size 60*49.5*61mm
sealing method heat srhinkable tube waterproof class IP68
লক্ষণীয় করা

fiber optic joint closure

,

outdoor splice box

একটি বার্তা রেখে যান
পণ্যের বর্ণনা

48 Fibers Dome Fiber Optic Splice Closure,Pole Mount Jounction Box Closure

Equal to TYCO FOSC 400B4





Features:

  • May be used for cut, uncut and taut sheath applications.
  • May be used for all fiber optic cable.
  • Sheath retention & central strength member termination system included.
  • Ribbed closure construction-lightweight plastic offers strength and resistance
  • to chemical and U.V attack
  • Installation and reentry with a minimum of tools
  • All hardware are captivated



Application

  • Underground, Aerial, Vault, Pole Mounting and Wall Mounting



Specification



Model No

Max capacity

(single fusion)

Splice tray

Size

(Hx D)

Cable ports

Max cable

diameter

YDSC-JB102A

96 fiber

(4x24)

Tray JB102A

Capacity:24 fiber

540x180mm

1 oval port +

4round ports

1 oval ports for

 1 loop(uncut) cable

 with max ¢25mm.;

4 round ports,each

port for 1 cable with

max ¢19mm

YDSC-JB102B

Tray JB102B

Capacity:24 fiber


Standard accessories



Dome,Base,clamp,O-ring,metal storage basket,Splice Tray,,Heat shrink protective sleeve,

buffer tube,Cable ties,Grounding wire,Labeling paper,Installation Manual,



1 set of Oval port closing kits:



Including 1 heat shrink fixing tube+ 2pcs of Aluminum paper(10cm x 10 cm)+sand paper

(2.5 x30mm)+ branching clip etc



4 sets of Round port closing kits:



Including 1 heat shrink fixing tube+1 pc of Aluminum paper(10cm x 10 cm)etc



Optional accessories



Hanging hook,Wall mounting(Duct mounting) kits,Pole Mounting kit,Grounding device,Air valve



Order information:



YDSC-JB102X-XX-XX-X

YDSC-JB102(A,B)-Capacity(12,24,36,48,72fiber...)-splice tray(01-=1pc,02=2pcs...)

-accessories(S=standard;O=optional,on customer request)
