PC Fiber Optic Splice Closure
বিনামূল্যে নমুনা এবং কুপন জন্য আমার সাথে যোগাযোগ করুন.
হোয়াটসঅ্যাপ:0086 18588475571
wechat: 0086 18588475571
স্কাইপ: sales10@aixton.com
আপনার কোন উদ্বেগ থাকলে, আমরা 24-ঘন্টা অনলাইন সহায়তা প্রদান করি।
xshape | inline horizontal closure | max capacity | Bunchy: 192 (Cores); Ribbon: 432(Cores) |
---|---|---|---|
cable port | 3in 3out | cable diameter | Φ7 - Φ23 mm |
material | PC | splice tray qty | max. 8 pcs |
closure dimension | 450x220x160 mm | weight | 4 kgs |
carton qty | 10pcs | carton size | 63*52*50mm |
লক্ষণীয় করা | fiber optic splice enclosure,fiber optic joint closure |

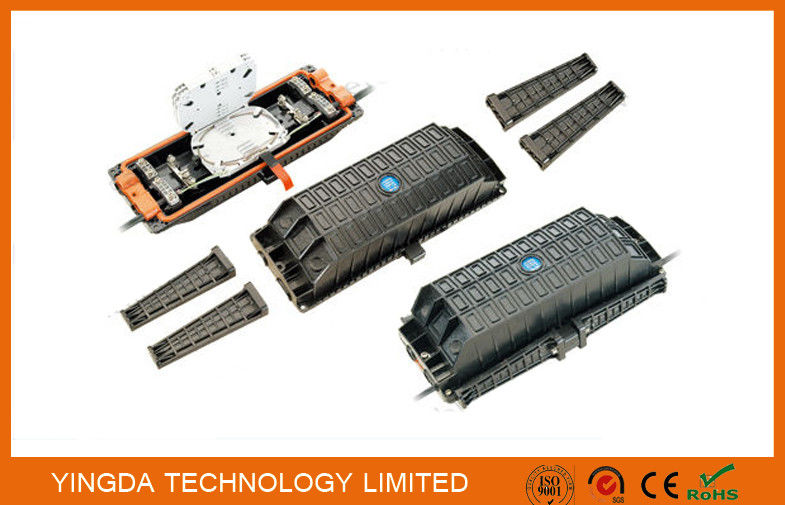

PC Fiber Optic Splice Closure 3in 3Out In-line Optical Fiber Enclosure
The closure casing is made of quality engineering plastics, and of good performance of anti-erosion
against acid and alkali salt, anti-aging, as well as smooth appearance and reliable mechanical structure.
The mechanical structure is reliable and has the performance of resisting wild environment and
intensive climate changes and serious working environment. The protection grade reaches IP68.

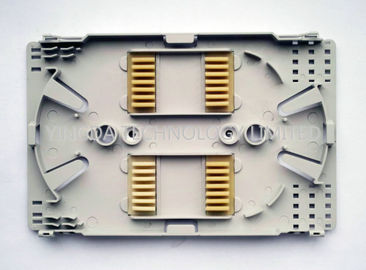

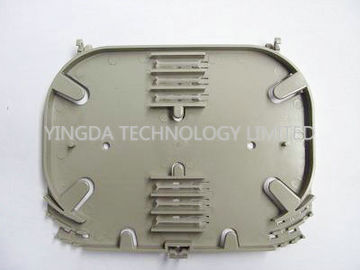

The closures are applicable to ribbon type optical cable and common optical cable. The splice trays
inside the closure are turnable like booklets, and have adequate curvature radius and space for
winding optical fiber to make sure the curvature radius for optical winding 40mm.Each optical cable
and fiber can be operated individually.
The closure is of small volume, big capacity and convenient maintenance.
The elastic rubber seal rings inside the closure are of good sealing and sweat-proof performance.
The casing can be opened repeatedly without air leakage. No special tools are required.
The operation is easy and simple.The air valve is provided for the closure and used to check the
sealing performance.
Sell point:
- Dimension (L×W×H): 450×220×160 mm
- Cable ports:6 ports / 3in 3out
- Cable Diameter: Max φ23
- Max.Capacity (bunchy fiber): 192
- Core capacity per tray: 12 or 24
- Holds up to 192 fibers.
Features
- Easy to re-enter
- Cable entry/exit ports
- Pressure testing valve and earth deriving device
- Intergrated seal, air tight and water proof
- Ideal for cable repair
- RoHS compliant
- Can be used in through, branch or mid span splice locations
Application:
- aerial, underground, pipeline, handhole.
The ambient temperature ranges from -40 to 65℃.
Specification
Outside dimension (LxWxH) |
450x220x110 (mm) |
Weight (excluding outside box) |
2750g-3200g |
Number of inlet/outlet ports |
3 (pieces) on each side (total 6 pieces) |
Diameter of fiber cable |
Φ8—Φ23 (mm) |
Capacity of FOSC |
Bunchy: 6—96 (Cores) Ribbon: max. 216 (Cores) |
Splice tray |
Max. 4pcs |
Splice tray capacity |
Bunchy:6,12,24cores;Ribbon:3,6 pieces |
Insert plate size |
175x56x30(mm) |
Body size |
378x136 (mm) |
Accessory List
No. |
Name of accessories |
Usage |
1 |
Heat shrinkable protective sleeve |
Protecting fiber splices |
2 |
Nylon tie |
Fixing fiber with protective coat |
3 |
Insulation tape |
Enlarging diameter of fiber cable for easy fixing |
4 |
Seal tape |
Enlarging diameter of fiber cable which fits in with seal fitting |
5 |
Hanging hook |
For aerial use |
6 |
Earthing wire |
Putting through between earthing devices |
7 |
Abrasive cloth |
Scratching fiber cable |
8 |
Labeling paper |
Labeling fiber |
9 |
Special wrench |
Fixing bolts, tightening nut of reinforced core |
10 |
Measuring paper |
To measure circle, of which its diameter is enlarged with seal tape |
11 |
Buffer tube |
Hitched to fibers and fixed with FOST, managing buffer |
12 |
Desiccant |
Put into FOSC before sealing for desiccating air. |
