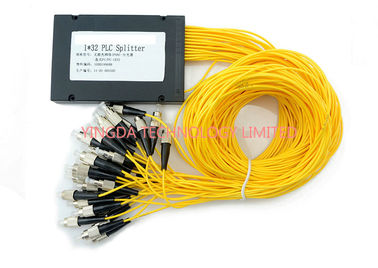

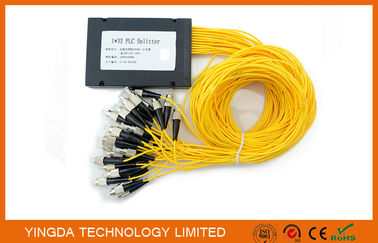

GPON Low PDL 1*32 FC PLC Fiber Optic Splitter ABS Plastic For Data Communication
বিনামূল্যে নমুনা এবং কুপন জন্য আমার সাথে যোগাযোগ করুন.
হোয়াটসঅ্যাপ:0086 18588475571
wechat: 0086 18588475571
স্কাইপ: sales10@aixton.com
আপনার কোন উদ্বেগ থাকলে, আমরা 24-ঘন্টা অনলাইন সহায়তা প্রদান করি।
xconnector | FC | fiber type2 | Corning fiber SMF-28e |
---|---|---|---|
insertion loss | 16.9dB | Uniformity (Max.) | 1.5 dB |
wavelength | 1260-1650nm | PDL(Max.) | 0.3 dB |
plastic box module | 140*115*18 mm | Fiber length | 1.5 meter |
cable diameter | 3.0 mm | Split ratio | 1x32 splitter Module |
লক্ষণীয় করা | fbt coupler,plc splitter |
GPON Low PDL 1*32 SC PLC Splitter, Fiber Optic PLC Splitter Box1:32 ABS Plastic
Planar Lightwave Circuits (PLC) Optical Splitter are fully passive optical branching devices that exhibit very low inertion loss and PDL, great channel uniformity and a wide wavelength perative range.
These splitters are manufactrued and tested to Telcordia-1209-core & GR-1221-core to provide high performance,specifically designed to meet the tough requirement of FTTH,PON and CATV networks.
Applications
* FTTH,FTTC,FTTB
* Passive Optical Networks(PON)
* CATV networks and data communications
* Fiber optic equipment and systems
Features
1. The loss is not sensitivity to optical wave length to be transmitted .It can meet the transmission
requirment of different wave.
2. Light splitting uniform.may distripute signal to customer uniformly.
3. The structure is compact .Small volume (1X32Splitter size :4X7X50mm).may install directly into
present various cross connecting cabinet ,need not special desigh and leave larger installation space .
4. The branched channels of single element may reach to more 32 channels.
5. The cost of multichannel is low .The more the branched channel qualtity ,the cost advantage will be
more obviously .
Specifications
Table 1 – 1×N PLC Splitter Rack
Parameters |
1×2 |
1×4 |
1×8 |
1×16 |
1×32 |
1×64 |
Operating Wavelength (nm) |
1260~1650 |
|||||
Fiber Type |
SMF-28e or customer specified |
|||||
Insertion Loss (dB)(S/P Grade) |
4.0/3.8 |
7.3/7.0 |
10.5/10.2 |
13.7/13.5 |
16.9/16.5 |
21.0/20.5 |
Loss Uniformity (dB) |
0.4 |
0.6 |
0.8 |
1.2 |
1.5 |
2.5 |
Return Loss (dB) (S/P Grade) |
50/55 |
50/55 |
50/55 |
50/55 |
50/55 |
50/55 |
Polarization Dependent Loss(dB) |
0.2 |
0.2 |
0.3 |
0.3 |
0.3 |
0.4 |
Directivity (dB) |
55 |
55 |
55 |
55 |
55 |
55 |
Wavelength Dependent Loss(dB) |
0.3 |
0.3 |
0.3 |
0.5 |
0.5 |
0.5 |
Temperature Stability (-40~85 °C)(dB) |
0.5 |
0.5 |
0.5 |
0.5 |
0.5 |
0.5 |
Operating Temperature (°C) |
-40~85 |
|||||
Storage Temperature (°C) |
-40~85 |
|||||
|
Table 2 – 2×N PLC Splitter Rack
Parameters |
2×2 |
2×4 |
2×8 |
2×16 |
2×32 |
Operating Wavelength (nm) |
1260~1650 |
||||
Fiber Type |
SMF-28e or customer specified |
||||
Insertion Loss (dB)(S/P Grade) |
4.2 |
7.6 |
11.0 |
14.5 |
17.5 |
Loss Uniformity (dB) |
0.8 |
1.5 |
1.5 |
2.0 |
2.5 |
Return Loss (dB) (S/P Grade) |
50/55 |
50/55 |
50/55 |
50/55 |
50/55 |
Polarization Dependent Loss(dB) |
0.2 |
0.2 |
0.3 |
0.4 |
0.4 |
Directivity (dB) |
55 |
55 |
55 |
55 |
55 |
Wavelength Dependent Loss(dB) |
0.3 |
0.5 |
0.5 |
0.5 |
0.5 |
Temperature Stability(-40~85 °C)(dB) |
0.5 |
0.5 |
0.5 |
0.5 |
0.5 |
Operating Temperature (°C) |
-40~85 |
||||
Storage Temperature (°C) |
-40~85 |
||||
|
