FTTH Wall Mounted Fiber Optic Termination Box, 4 Fibers Fiber Splice Box SC Adaptor with Pigtails

উৎপত্তি স্থল চীন
পরিচিতিমুলক নাম YINGDA
সাক্ষ্যদান ISO,SGS
মডেল নম্বার FTB104A
ন্যূনতম চাহিদার পরিমাণ 50 PCS
মূল্য Negotiable
প্যাকেজিং বিবরণ 1pc/ box, 50pcs/ carton box
পরিশোধের শর্ত Western Union, MoneyGram, T/T

বিনামূল্যে নমুনা এবং কুপন জন্য আমার সাথে যোগাযোগ করুন.

হোয়াটসঅ্যাপ:0086 18588475571

wechat: 0086 18588475571

স্কাইপ: sales10@aixton.com

আপনার কোন উদ্বেগ থাকলে, আমরা 24-ঘন্টা অনলাইন সহায়তা প্রদান করি।

x
পণ্যের বিবরণ
color white material cold rolled steel
connector SC fiber count 4 cores
size 115*135*41.5 mm cable port 1port, can open another on demand
cable diameter 5~10mm
লক্ষণীয় করা

fiber optic terminal box

,

fiber optic junction box

একটি বার্তা রেখে যান
পণ্যের বর্ণনা

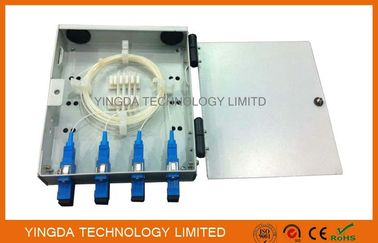

FTTH Wall Mounted Fiber Optic Termination Box, 4 Fibers Fiber Splice Box SC Adaptor with Pigtails





Model: FTB104A



Sell point:

  • Max 4pcs SC / LC duplex adapter.
  • Material: ABS plastic, white color
  • indoor wall mounting self-clip cover
  • empty or fully load can be offer
  • 100% test in house before shipment
  • sample is ok
  • each one with individual pacakge
  • customer logo ok



Description:



Used in the end termination of residential buildings and villas,to fix and splice with pigtails.

 Hinge and convenient press-pull button lock design; Wall mounted with mechanical protection function;

Max fiber capacity is 4 fibers SC, 4 adapters SC output, available for FC, SC, ST, LC Adapters.



Features:

  1. small size,light weight,pleasing in appearance
  2. wall mounted with mechanical protection function
  3. max fiber capacity 4 fibers,4 adapter output
  4. available for FC,SC,ST,LC adapters
  5. hinge and convenient press-pull button lock design
  6. Environmental Temperature:-25°C~40°C;
  7. Self-clip design,easy to operate

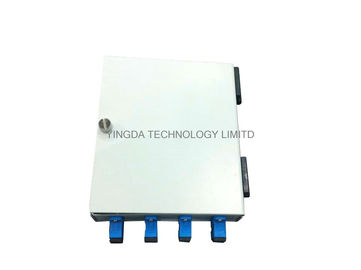

Product Dimensions



FTTH Wall Mounted Fiber Optic Termination Box, 4 Fibers Fiber Splice Box SC Adaptor with Pigtails 0



Specifications:



Model

FTB104A

FTB108A

Size(H*W*D)mm

115*135*41.5

115*135*41.5

Cable diameter (mm)

5~10



Cable ports

2 pcs

2 pcs

Max capacity of splice

4 cores

8 cores

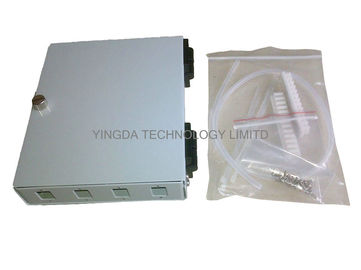

Standard accessories:

FTTH Wall Mounted Fiber Optic Termination Box, 4 Fibers Fiber Splice Box SC Adaptor with Pigtails 1

white protection kits 2 pcs
cable tie 4 pcs
adapter screws 16 pcs
buffer tube 1 pcs

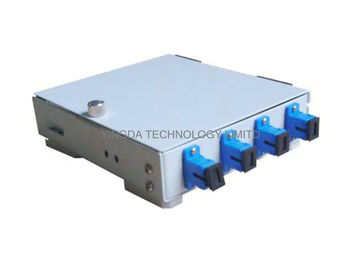

More products show:
