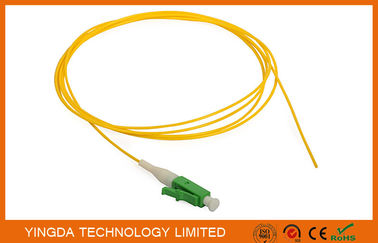

LC APC Fiber Pigtails OS2 Simplex 900um 1Meter , Pigtail LC APC SM SX 1M

উৎপত্তি স্থল চীন
পরিচিতিমুলক নাম YINGDA
সাক্ষ্যদান ISO
মডেল নম্বার FPG-LCA-OS1-0.9-1.5-Y
ন্যূনতম চাহিদার পরিমাণ 100PCS
মূল্য Negotiable
প্যাকেজিং বিবরণ 1pc in a plastic bag, customer logo or label design ok

বিনামূল্যে নমুনা এবং কুপন জন্য আমার সাথে যোগাযোগ করুন.

হোয়াটসঅ্যাপ:0086 18588475571

wechat: 0086 18588475571

স্কাইপ: sales10@aixton.com

আপনার কোন উদ্বেগ থাকলে, আমরা 24-ঘন্টা অনলাইন সহায়তা প্রদান করি।

x
পণ্যের বিবরণ
Fiber type single mode fiber count Simplex
cable type fiber optic cable diameter 900 um
cable length 1 meter connector boot green and white
polish mode APC connector LC
cable color yellow or white OEM OK
ferrule ceramic
লক্ষণীয় করা

waterproof pigtail

,

ribbon pigtail

একটি বার্তা রেখে যান
পণ্যের বর্ণনা

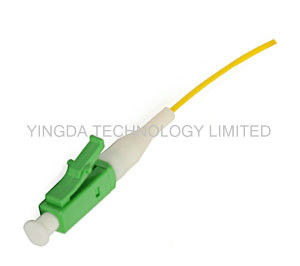

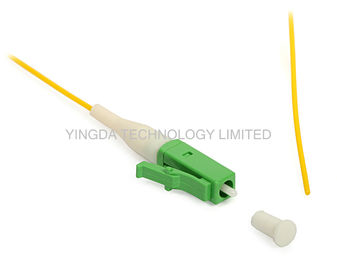

LC APC Fiber Pigtails OS2 Simplex 900um 1Meter, Pigtail LC APC SM SX 1M





LC Fiber Optic Pigtail are a small form factor fiber optic Pigtail. Lucent Technologies first developed

 the LC Pigtail for TelCo environment uses. Hence, LC stands for Lucent Pigtails. LC fiber Pigtails

have been standardized as FOCIS 10 (Fiber Optic Pigtail Intermate-ability Standards) in EIA/TIA-604-10.

LC Fiber Optic Pigtail use a 1.25 mm ferrule, half the dimension of the ST ferrule or a regular ceramic

ferrule Pigtail. LC gives excellent performance and is greatly preferred for single mode transmission.



The LC Unibody is fully compatible with the original LC family of single-mode and multimode Pigtails,

adapters and associated components, manufactured under a worldwide license from OFS Fitel. The

Unibody features a compact, pull-proof design with RJ-45 style interface, and features a one-piece

molded housing with internal strength member, for significantly improved 90 side-pull performance

under Telcordia GR-326-CORE testing. It is manufactured using a ruggedized material that results

in a latch trigger up to four times stronger than average.



The LC Unibody Series includes an optional anti-snag collar that prevents accidental tear and damage

in high density networks. The collar comes in either simplex or duplex configurations, and can be used

on the same Pigtail body, eliminating the need to purchase different housing styles. The series includes

a jumper Pigtail designed for 2.0mm cordage, and a Behind the Wall (BTW) version for 900um buffered

fiber. The Unibody can be used for single-mode and multimode applications with either a PC or APC

endface. Plastic housing and boot made from UL rated materials are also available. The series is

compliant with Telcordia GR-326-CORE, IEC 61754-20, and TIA/EIA 604-10 standards, and meets

independent testing criteria from OFS Fitel.



Features

  • Insertion Loss <0.3dB
  • High Return Loss
  • Good Repeat ability
  • Good Exchange ability
  • High Temperature Stability
  • Comply with YD/T 1272.4-2007 specification
  • 8 Degree Angled physical contact polishing (APC)



Application

  • CATV network
  • Optical fiber communication systems
  • Optical fiber data transmission
  • Building network access
  • Cabling system, ODF
  • FTTX networks



Specification



Item

Single mode (nomomodo)

Multimode (Multimodo)

Wavelength

1310&1550nm

850&1300nm

Fiber type

9/125um

62.5/125um,50/125um,50/125um

OM3,50/125um OM4

Connector type

SC ST FC LC MU MTRJ E2000 DIN D4 ESCON

Insertion loss on average

≤0.3dB

≤0.3dB

Max. insertion loss

≤0.5dB

≤0.5dB

Return loss

UPC≥55dB;APC≥65dB

≥20dB

Operating temperature

-40~+75℃

Storage temperature

-40~+85℃



Ordering Information


LC / PC SM 9/125 SIMPLEX 0.9mm –1M LSZH

   ①  ②      ③              ④         ⑤          ⑥    ⑦



① Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
② Ferrule End-face: PC, UPC, APC
③ Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um), OM3 10Gigabit, OM4
④ Cable Quantity: simplex or duplex
⑤ Cable Diameter: Ф3.0mm, Ф2.4mm, Ф2.0mm, Ф1.8mm, Ф1.6mm, Ф0.9mm
⑥ Cable Length: 1, 2, 3 meter or customized
⑦ Cable type: PVC, LSZH
