Indoor Multi-Fiber Multi-purpose Fiber Optic Distribution Cable Tight Buffer Aramid Yarn
বিনামূল্যে নমুনা এবং কুপন জন্য আমার সাথে যোগাযোগ করুন.
হোয়াটসঅ্যাপ:0086 18588475571
wechat: 0086 18588475571
স্কাইপ: sales10@aixton.com
আপনার কোন উদ্বেগ থাকলে, আমরা 24-ঘন্টা অনলাইন সহায়তা প্রদান করি।
xcable jacket | Yellow, Orange, Aqua, Blue | minimum length | 10km |
---|---|---|---|
fiber count | 4 core to 96 cores | cable size | max. 16.0mm |
jacket material | PE, LSZH, TPU | ||
লক্ষণীয় করা | ftth fiber optic cable,ftth drop cable |

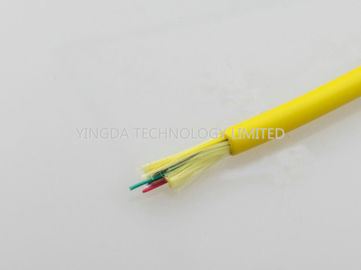

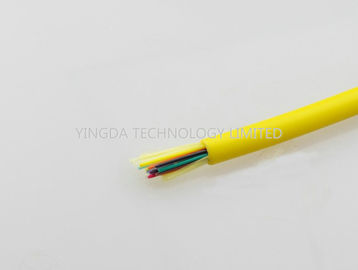

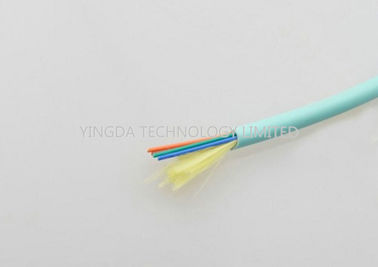

Indoor Multi-Fiber Multi-purpose Fiber Optic Distribution Cable Tight Buffer Aramid Yarn
Description

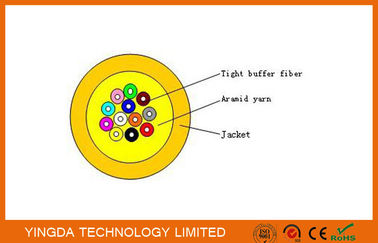

Multi-purpose distribution cable use several 900um flame-retardant tight buffer
fiber as optical communication medium, the tight buffer fiber wrapped with a
layer of aramid yarn as strength member units, and the cable is completed
with a PVC or LSZH(Low smoke, Zero halogen, Flame-retardant) jacket.
Application
◆Multi-optical fiber jumper
◆Indoor any purpose cable distribution
Technical parameters
Cable code |
Fiber count |
Cable size (mm) |
Cable weight (kg/km) |
Tensile(N) |
Crush (N/100mm) |
Crush resistance |
Temper ature (°C) |
||||||||||
Long term |
Short term |
Long term |
Short term |
Dynamic |
Static |
||||||||||||
MPC04 |
4 |
4.8 |
17 |
200 |
550 |
200 |
1000 |
20D |
10D |
-20~+60 |
|||||||
MPC06 |
6 |
5.2 |
21 |
200 |
550 |
200 |
1000 |
20D |
10D |
||||||||
MPC08 |
8 |
5.5 |
28 |
200 |
550 |
200 |
1000 |
20D |
10D |
||||||||
MPC12 |
12 |
6.2 |
36 |
300 |
650 |
200 |
1000 |
20D |
10D |
||||||||
MPC24 |
24 |
8.5 |
59 |
400 |
750 |
200 |
1000 |
20D |
10D |
||||||||
MPC48 |
48 |
11.8 |
125 |
500 |
850 |
200 |
1000 |
20D |
10D |
||||||||
MPC72 |
72 |
14.5 |
150 |
600 |
800 |
200 |
1000 |
20D |
10D |
||||||||
MPC96 |
96 |
16.0 |
185 |
800 |
1000 |
200 |
1000 |
20D |
10D |
||||||||
Fiber type |
G652D |
50/125 |
62.5/125 |
G657A1 |
G657A2 |
OM3-150 |
OM3-300 |
OM4 |
|||||||||
Jacket material |
PE |
LSZH |
TPU |
||||||||||||||
Features |
|||||||||||||||||
Single mode fiber optic cable sheath color: yellow |
|||||||||||||||||
Multi-mode fiber optic cable sheath color: orange |
|||||||||||||||||
Other contracted color |
