FTTH SC FC FIC Field Installable Connector For Fusion Splicer Machine

উৎপত্তি স্থল চীন
পরিচিতিমুলক নাম YINGDA
সাক্ষ্যদান ISO
মডেল নম্বার YD-FS-SCA-09
ন্যূনতম চাহিদার পরিমাণ 100 PCS
মূল্য Negotiable
প্যাকেজিং বিবরণ 5pcs / blister box,1000pcs / carton box
ডেলিভারি সময় 3-5 working days after get payment
পরিশোধের শর্ত T/T or western Union
যোগানের ক্ষমতা 10,000pcs per day

বিনামূল্যে নমুনা এবং কুপন জন্য আমার সাথে যোগাযোগ করুন.

হোয়াটসঅ্যাপ:0086 18588475571

wechat: 0086 18588475571

স্কাইপ: sales10@aixton.com

আপনার কোন উদ্বেগ থাকলে, আমরা 24-ঘন্টা অনলাইন সহায়তা প্রদান করি।

x
পণ্যের বিবরণ
fiber type SMF-28e corning fiber cable type 0.9,2.0,3.0mm cable
connector SC / APC, LC FC ST available cable mode single mode OS1
Connector house green insertion loss <0.3dB
Tools fusion splicer machine, cotton, alcohol,fiber cleaver application FTTH
user manual Chinese or English sample ok
লক্ষণীয় করা

quick assembly connector

,

FTTH connector

একটি বার্তা রেখে যান
পণ্যের বর্ণনা



FTTH SC FC FIC Field Installable Connector For Fusion Splicer Machine



Description



SC/APC Fusion splice-on connector is is optical fiber type quick connector, but its splicing point

inside the connector end, equivalently eliminate the pigtails when splicing.The advantage is no

need additional protection after splice, such as splice tray,splice closure,distribution box.In contract

to the design of mechanical splice connector, it save V-groove mechanical connector maintenance

and operation cost and durable, which overturns the concept that high cost of splice machine

and do not apply to FTTH construction.





Application



  • FTTH optic fiber terminal connection



Features

  1. Low operation cost, high efficiency
  2. Quickly achieve the on-site termination connection
  3. Easy operation or use
  4. Pressure welding parts adopt new unique structure design, installation without glue injectino,
  5. no grinding, no consumables
  6. High installation quality, high success rate and installation fast, etc
  7. Easy to carry
  8. Accurate mechanical dimensions
  9. All materials conforms to ROHS



Specification



Item

Parameter

Cable

3.1*2.0mm drop cable

Fiber diameter

125um(G657A2 bare fiber)

Tight buffer diameter

250um

Fiber type

Single mode OS1 9/125um

Insertion loss

≤0.3dB

Return loss

≤-50dB

Bare fiber solid tightness

>250g

Working temperature

-40℃-+80℃

Tensible strength

60N(5kgs for 2mins)

Drop test

4 meters high cement floor direction at a time,in total 3times



* Please use the customized FTTH melting machine



* Recommended consumable:

Keep a supply of the following items

  • Denatured alcohol
  • Lint-free tissues
  • Cotton swab

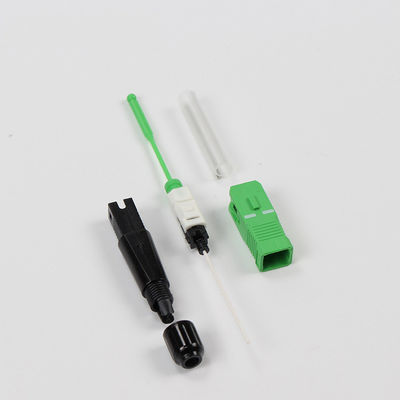

FTTH SC FC FIC Field Installable Connector For Fusion Splicer Machine 0

Order information

FS-XXX-XX-XXX

         1- 2 -34



FS= fusion

splice

1

2

3

4

Connector type

Fiber inside

Applicable cable

diameter

House color

SCU=SC/UPC

SCA=SC/APC

FCU=FC/UPC

09=0.9mm

25=250um bare fiber

09=0.9mm

20=2.0mm

30=3.0mm

B=blue

B=black

G=green

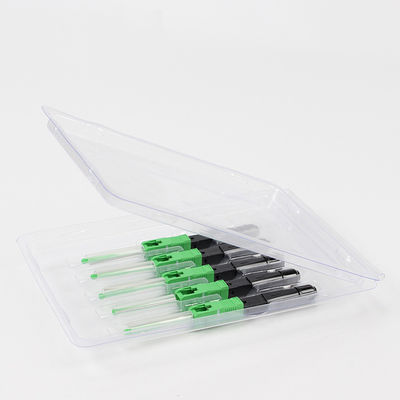

Package information

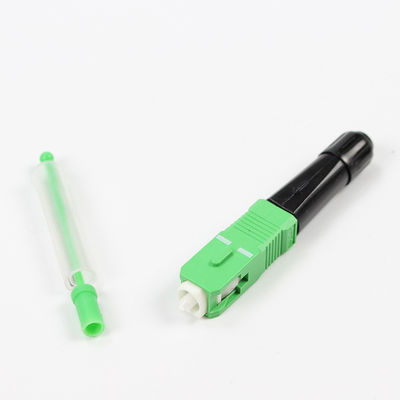

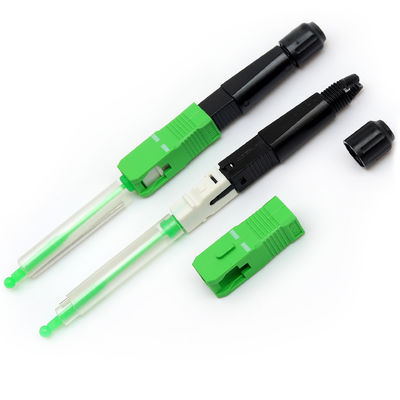

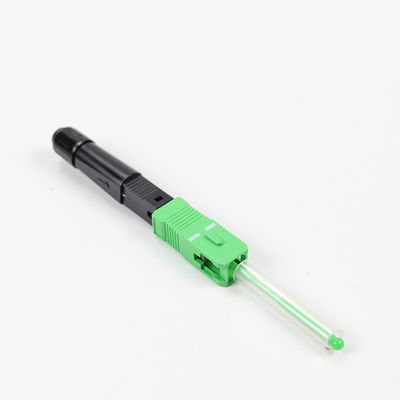

FTTH SC FC FIC Field Installable Connector For Fusion Splicer Machine 1FTTH SC FC FIC Field Installable Connector For Fusion Splicer Machine 2FTTH SC FC FIC Field Installable Connector For Fusion Splicer Machine 3
