Plastic Fiber Optic Termination Box Wall Socket 2 Port SC 86 Type
বিনামূল্যে নমুনা এবং কুপন জন্য আমার সাথে যোগাযোগ করুন.
হোয়াটসঅ্যাপ:0086 18588475571
wechat: 0086 18588475571
স্কাইপ: sales10@aixton.com
আপনার কোন উদ্বেগ থাকলে, আমরা 24-ঘন্টা অনলাইন সহায়তা প্রদান করি।
xmaterial | abs | color | white |
---|---|---|---|
max capacity | 4fibers | adaper | SC or LC |
pigtail length | SC pigtails 1 meter 0.9mm | applicable | ftth drop cable, fast connector, indoor fiber cable |
customer logo | ok | ||
লক্ষণীয় করা | fiber optic junction box,fiber optic distribution box |

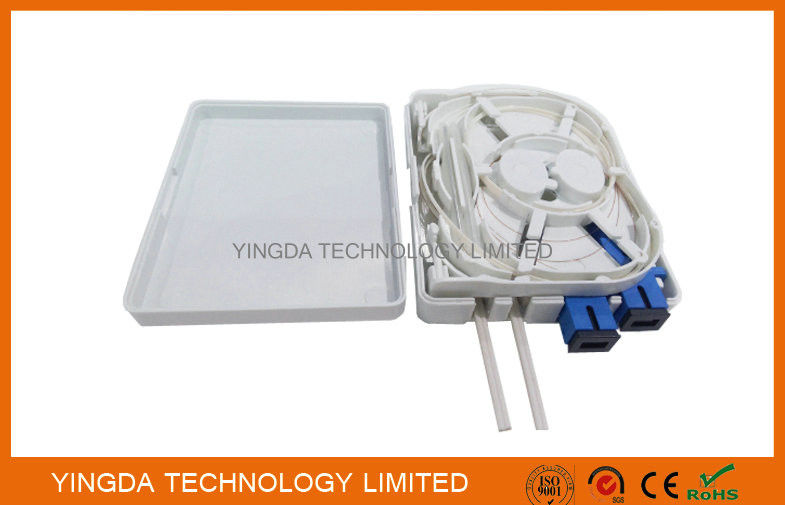

Plastic Fiber Optic Termination Box Wall Socket 2 Port SC 86 Type
FTTH Wall Outlet 86 type can be multi-use to achieve a variety of fiber optic cable in multimode
access, and fixed fiber optic cable. No additional insertion loss, protect optical fiber and cable,
reduce the potential risk, simple and convenient for construction.
Features:
- Made of high class engineering plastic ABS or PC,flame retardant.
- Used for splicing and termination between indoor fiber optic cable and pigtails
- Light weight, small size
- Wall mounting screws included
- Φ0.2-Φ3.0mm pigtail & 3.1x2.0mm indoor drop cable available
- Compatible with SC & FC adapter, optical fast connectors
- Snap on cover, use splice tray to ease operation
- wall mounted or desktop
Terminal Box Structure
Specifications
Model | FTB86X |
Material | Cold rolled steel for the box, ABS for the tray |
Operating Temperature | -40°C~+60°C |
Relative Humidity | <95%(+40°C) |
Insulated resistance | ≥2x10MΩ/500V(DC) |
Capacity | 4core |
Installation Method (in overstriking ) | Floor Standing / wall mounted / pole mounted / rack mounted / corridor mounted / mounted in cabinet |
Tensile strength | >50N |
Application
- FTTX applications
- Single mode
- Wall mount or fiber distribution
Package information
Model | FTB86X |
Carton size | 53*39*54cm |
Quantity/carton | 400pcs |
Weight/carton | 33kgs |
More photos
Box surface box inside
box back box inside
Can use FTTH drop cable with FAST CONNECTORS
