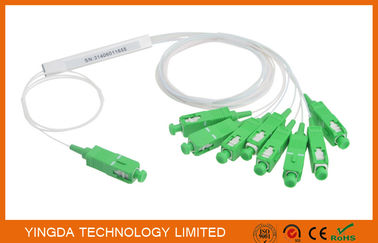

1:8 Fiber Pon Splitter Steel Tube Blockless Mini Module 900um,1x8 Optical splitter 1Meter

উৎপত্তি স্থল চীন
পরিচিতিমুলক নাম YINGDA
সাক্ষ্যদান ISO
মডেল নম্বার 1*8 PLC splitter
ন্যূনতম চাহিদার পরিমাণ 100 pcs
মূল্য negotiable
প্যাকেজিং বিবরণ 1pc/ box,80pcs/carton box
ডেলিভারি সময় 5-8days after payment
পরিশোধের শর্ত Western Union, T/T, MoneyGram
যোগানের ক্ষমতা 10,000 pcs per month

বিনামূল্যে নমুনা এবং কুপন জন্য আমার সাথে যোগাযোগ করুন.

হোয়াটসঅ্যাপ:0086 18588475571

wechat: 0086 18588475571

স্কাইপ: sales10@aixton.com

আপনার কোন উদ্বেগ থাকলে, আমরা 24-ঘন্টা অনলাইন সহায়তা প্রদান করি।

x
পণ্যের বিবরণ
split ratio 1:8 splitter module fiber type SMF-28e G657A1
insertion loss 10.2dB connector SC/APC
wavelength 1260 - 1650 nm PDL(Max.) 0.3dB
Standard Telcordia GR-1221 and GR-1209 tube dimension 60*7*4mm
input and output length 1meter cable type tight buffer
cable color white cable diameter 0.9mm
লক্ষণীয় করা

fiber optic splitter

,

fbt coupler

একটি বার্তা রেখে যান
পণ্যের বর্ণনা

Blockless Fiber PLC Splitter 1*8 SC/APC Connectors LSZH, FTTH Optical Fiber PLC Splitter 1x8





Planar Lightwave Circuit (PLC) splitter, PLC splitters are used to distribute or combine optical signals, widely used in GPON Network. It is based on planar lightwave circuit technology and provides a low cost light distribution solution with small form factor and high reliability. 1xN PLC splitters are precision aligning process to divide a single optical input(s) into multiple optical outputs uniformly, while 2xN PLC splitters divide a dual optical input(s) into multiple optical outputs. YINGDA PLC splitters offer superior optical performance, high stability and high reliability to meet various application requirements. YINGDA is a manufacturer and supplier who can supply PLC Splitters with low price. The Polarization Maintaining (PM) PLC Splitteris also on sale. YINGDA can also provide customized services of PLC Splitters and customers can customize LOGO. Our PLC Splitters type as shown below. For any questions, please feel free to email us: sales@ydpcable.com.





Features



Low Insertion loss

Low PDL

Compact Design

Good channel-to-channel uniformity

High Reliability and Stability

Stability Telecordia GR-1221 and GR-1209

Components through TLC-Certified,Conform to YD1117-2001


Application



FTTX Systems

PON Networks

CATV Links

Optical Signal Distribution

Telecommunication Networks

1:8 Fiber Pon Splitter Steel Tube Blockless Mini Module 900um,1x8 Optical splitter 1Meter 0

Specification



Split ratio 1x2 1x4 1x8 1x16 1x32 1x64 1x128
Operating Wavelength(nm) 1260-1620nm
Fiber Type G657A1 or customer specified
Insertion Loss (dB)P Grade 3.8 7.1 10.2 13.5 16.5 20.5 23.8
Insertion Loss (dB) S Grade 4 7.3 10.5 13.7 16.9 21 24.2
Loss Uniformity(dB) 0.4 0.6 0.8 1.2 1.5 2 2.5
Polarization Dependent Loss(dB) 0.2 0.2 0.2 0.25 0.3 0.35 0.4
Return Loss (dB) 55
Directivity (dB) 55
Wavelength Dependent 0.3 0.3 0.3 0.5 0.5 0.5 0.5
Loss(dB)
Temperature Stability(-40- +85℃)(dB) 0.4 0.4 0.4 0.5 0.5 0.5 0.5
Operating Temperature -40- +85℃
Storage Temperature -40- +85℃



More pictures

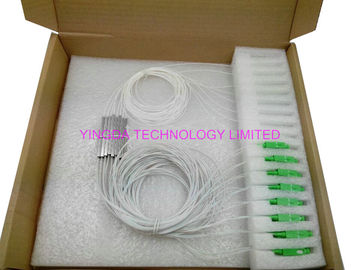

each plc splitter is good protected in foam and then put in small carton box, each box with 4pcs SCAPC 1x8 PLITTER ,and then in carton box, high quality and high impact package for box.

1:8 Fiber Pon Splitter Steel Tube Blockless Mini Module 900um,1x8 Optical splitter 1Meter 11:8 Fiber Pon Splitter Steel Tube Blockless Mini Module 900um,1x8 Optical splitter 1Meter 2



all connectors and cables pack inside is fixed with Adhesive tape, it can be taken off very easy by hand, no glue left. not influence the quality of the connectors and cables.

each splitter with test reports.



1:8 Fiber Pon Splitter Steel Tube Blockless Mini Module 900um,1x8 Optical splitter 1Meter 31:8 Fiber Pon Splitter Steel Tube Blockless Mini Module 900um,1x8 Optical splitter 1Meter 4



Order information



Type Package size Port Fiber Type Input/output Fiber length connector
PLCS BF=bare fiber
FO=fan-out
MD=module
MB=metal box
01X02
01x04
01x08
……
02x16
02x32
02x64
0=G652D
1=G657A
C=Customize
1=bare fiber
2=900µm
tight buffered
3=2.0mm
Loose tube
4=3.0mm
Loose tube
1=1m
2=1.5m
C=Customize
0=no connector
1=FC/APC
2=FC/PC
3=SC/APC
4=SC/PC
5=ST/APC
6=ST/PC
7=LC/AP
8=LC/PC
C=customize





Some Views of PLC Production Procedure



1:8 Fiber Pon Splitter Steel Tube Blockless Mini Module 900um,1x8 Optical splitter 1Meter 51:8 Fiber Pon Splitter Steel Tube Blockless Mini Module 900um,1x8 Optical splitter 1Meter 61:8 Fiber Pon Splitter Steel Tube Blockless Mini Module 900um,1x8 Optical splitter 1Meter 71:8 Fiber Pon Splitter Steel Tube Blockless Mini Module 900um,1x8 Optical splitter 1Meter 8
