Outdoor 16 Core Fiber Optic Termination Box With SC/APC Adapters

উৎপত্তি স্থল চীন
পরিচিতিমুলক নাম YINGDA
সাক্ষ্যদান ISO
মডেল নম্বার FDB0216
ন্যূনতম চাহিদার পরিমাণ 100PCS
মূল্য NEGOTIABLE
প্যাকেজিং বিবরণ 1 pc per box, 10 pcs per carton shipping box
ডেলিভারি সময় 5-8 working days
পরিশোধের শর্ত T/T, Western Union, MoneyGram

বিনামূল্যে নমুনা এবং কুপন জন্য আমার সাথে যোগাযোগ করুন.

হোয়াটসঅ্যাপ:0086 18588475571

wechat: 0086 18588475571

স্কাইপ: sales10@aixton.com

আপনার কোন উদ্বেগ থাকলে, আমরা 24-ঘন্টা অনলাইন সহায়তা প্রদান করি।

x
পণ্যের বিবরণ
adapter SC/APC Capacity 16 fibers
output 16 FTTH drop cable figure-8 or self-supporting type. Cable inport 2 PCS
PLC splitter 1:16 mini splitter Dimension 260*320*90mm
Material PC Color white
Application FTTH adapter quantity 16 pieces
customer logo ok customer label ok
লক্ষণীয় করা

fiber optic closure

,

optical distribution box

একটি বার্তা রেখে যান
পণ্যের বর্ণনা

FTTH Outdoor 16Core Fiber Optic Termination Box With SC/APC Adapters, 1x16 PLC Splitter Plastic





This fiber optic distribution box is adopted the latest design, no special tool for the locking, easy installation and opening. Flip-open cover design to avoid removing other splice tray, it also can be equipped with PLC splitter.

It is with the functions of mechanical splice,fusion splice,light splitting,wiring distribution.





Applications



1.Applicable in FTTH project
2. Suitable for corridor,basement,room and building's outer walls application
3. With the function of mechanical splice,fusion splice,light splitting,wiring distributions



Features:



1. Industry Standard User Interface, be made of high impact plastic.
2. Can accommodate 1x8 & 1X16 PLC splitter.
3. Anti-UV, Ultra violet resistant and rainfall resistant.
4. Up to 16 FTTH drops.
5. Wall and pole mountable.
6. 2 inlet ports, 16 outlet ports.





More clear pictures



Outdoor 16 Core Fiber Optic Termination Box With SC/APC Adapters 0Outdoor 16 Core Fiber Optic Termination Box With SC/APC Adapters 1

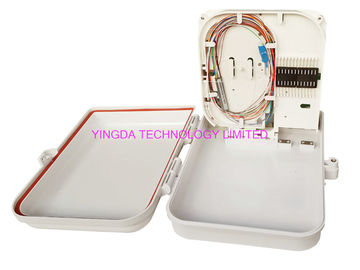

  • there is rubber seal all around the box in red color, which prevents the box from water, humidity and harsh environment outside.
  • it has double layer tray, upper layer for adapter panel and fiber routing or storage, down layer is for distribution, splitting or heatsrhink protection storage.



Outdoor 16 Core Fiber Optic Termination Box With SC/APC Adapters 2Outdoor 16 Core Fiber Optic Termination Box With SC/APC Adapters 3

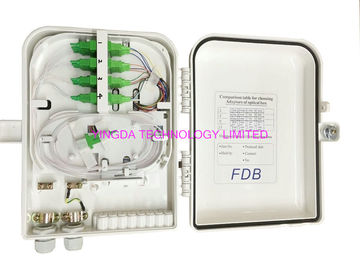

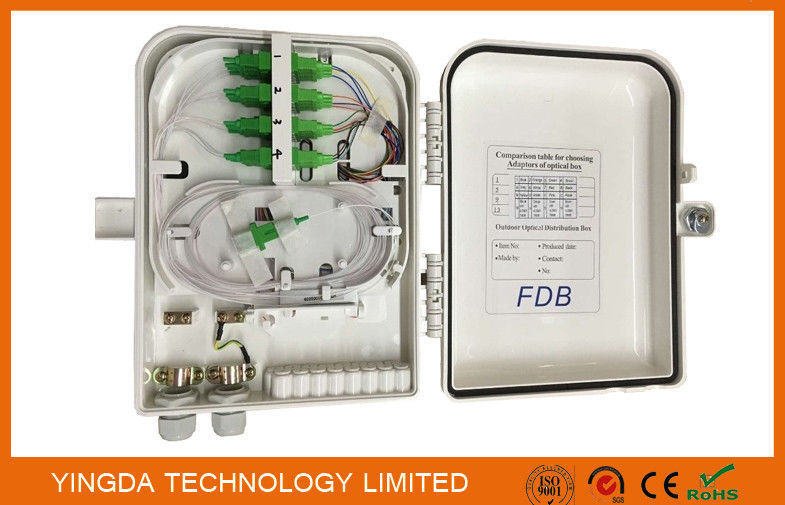

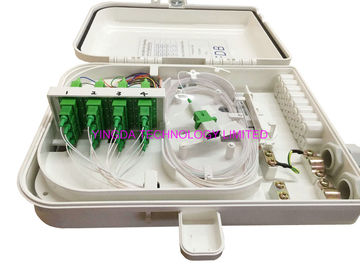

  • the adapter panel is plastic, and fix by screws, it maximum can install 16pcs SC adapters simplex, or LC duplex.
  • there is a speical fixation place for PLC splitter steel tube, maximum hold 1x16 plc splitters and there is 24pcs heat shrink tube protection tray.
  • the whole tray can be 90° angel rorate to ease on-site construction, during transporation,tighten the screws with box. Then it will be in place, not moving and break fiber, humanity design.
  • for better identification, the splitter input connectors can be blue color, then it will not confused with outputs connectors like below right pictures.

Outdoor 16 Core Fiber Optic Termination Box With SC/APC Adapters 4Outdoor 16 Core Fiber Optic Termination Box With SC/APC Adapters 5



empty box can install plc splitter mini module 0.9mm, steel tube, it has enough space for fiber storage, the cable length better to be 1meter or maximum 1.5meters.



Outdoor 16 Core Fiber Optic Termination Box With SC/APC Adapters 6Outdoor 16 Core Fiber Optic Termination Box With SC/APC Adapters 7



Specification



Model FDB-0216
Capacity 16 port
Material PC
Dimension 260mm(W)x320mm(D)x115mm(D)
Color White
Cable ports 2inlet, 16outlets
Adapter SC, LC
Splitter Mini splitter 1x8,1x16
Working temperature -40~+85°C



Packing information



Model N.W (kg/pcs) Dimension of outer carton (mm) G.W of outer Carton (kg/carton) No of Products (pcs/carton)
FDB-0216 1.80 550*355*620 19.8 10





FAQ

Q1. Can I have a sample order?

A: Yes, welcome sample order to test and check quality. Mixed samples are acceptable.



Q2. What about the lead time?

A: Sample needs 1-3 days, mass production time needs 5-7day for order quantity more than 1000pcs



Q3. Do you have any MOQ limit ?

A: low MOQ, and for most of the products, there is no MOQ



Q4. How do you ship the goods and how long does it take to arrive?

A: if small order, by DHL, UPS, FedEx or TNT by air which usually takes 2-3 working days to arrive. If by airline shipping, it takes about 5-7days, if by sea shipping, it should take around 15-30days based on different country and continent, all of them are accepted.



Q5. How to proceed an order ?

A: Firstly, let us know your requirements or application in details.
Secondly, We quote according to your requirements or our suggestions.
Thirdly, customer confirms the samples and places deposit for formal order.
Fourthly, We arrange the production.
