12 Cores 8 Cores FTTH Fiber Optic Termination Box / Distribution Box IP65 PLC Spiltter Distribution Box

উৎপত্তি স্থল চীন
পরিচিতিমুলক নাম YINGDA
সাক্ষ্যদান ISO
মডেল নম্বার FDB0212C
ন্যূনতম চাহিদার পরিমাণ 200pcs, first order accept small order
মূল্য negotiable
প্যাকেজিং বিবরণ 1pc/box, 20pcs/carton box
ডেলিভারি সময় 5-8working days
পরিশোধের শর্ত T/T, Western Union, MoneyGram, L/C
যোগানের ক্ষমতা 50k per month

বিনামূল্যে নমুনা এবং কুপন জন্য আমার সাথে যোগাযোগ করুন.

হোয়াটসঅ্যাপ:0086 18588475571

wechat: 0086 18588475571

স্কাইপ: sales10@aixton.com

আপনার কোন উদ্বেগ থাকলে, আমরা 24-ঘন্টা অনলাইন সহায়তা প্রদান করি।

x
পণ্যের বিবরণ
material PC+ABS Capacity 12 fibers
adapter qty 12pcs SC / LC duplex split ratio 1x2,1x4,1x8 micro splitter
color white size 225*200*65mm
connector insertion loss <0.2dB OME or sample ok
লক্ষণীয় করা

optical distribution box

,

splitter distribution box

একটি বার্তা রেখে যান
পণ্যের বর্ণনা

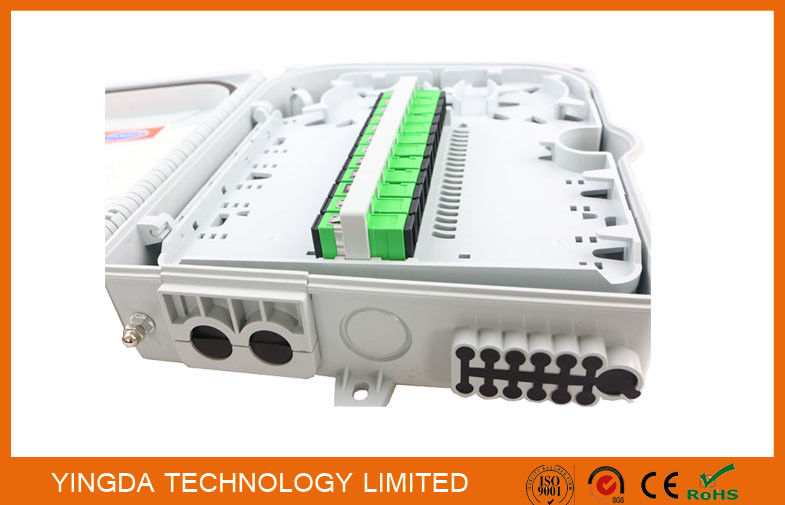

IP65 12 Cores 8 Cores FTTH Fiber Optic Termination Box ABS+PC 2In 12Out PLC Splitter Box



Model:FDB0212C





The distribution box is used as a terminal point for the feeder cable to connect with drop cable in FTTX communication network system. The fiber splicing, splitting, distribution can be done in this box ,and meanwhile it provide solid protection and management for the FTTX net work building.





Features:

•Total enclosed structure, be in nice shape
•Material: PC+ABS, wet proof , waterproof, anti--aging
•Clamping for feeder cable and drop cable, fiber splicing , fixation, storage, distribution...all in one
•Cable, pigtail , patch cord are running through own path without disturbing each other, cassette type SC adapter installation, easy to maintain and extend the capacity
•Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.



Application: FTTH and FTTB



Standard Configuration

Splice cassette and cable management tool, installation nuts and bolts, protection sleeves, hose clamp, rubber steal for cable entrance

Optional Configuration
Extra lock and key



More pictures

12 Cores 8 Cores FTTH Fiber Optic Termination Box / Distribution Box IP65 PLC Spiltter Distribution Box 012 Cores 8 Cores FTTH Fiber Optic Termination Box / Distribution Box IP65 PLC Spiltter Distribution Box 112 Cores 8 Cores FTTH Fiber Optic Termination Box / Distribution Box IP65 PLC Spiltter Distribution Box 2 12 Cores 8 Cores FTTH Fiber Optic Termination Box / Distribution Box IP65 PLC Spiltter Distribution Box 3



Specifications

Environmental requirement   Main technical data
Working temperature -40~+75℃ Insertion loss ≤0.2dB
Relative humidity ≤85%(+30℃) UPC Return loss ≥50dB
Atmospheric pressure 70KPa~106KPa APC Return loss ≥60dB
size 2 core 168*102*32mm
size 4 core 186*116*41mm
size 6 core 196*116*41mm
size 8 core 223*180*48mm
size 12core 310*224*73mm
size 24 core 317*237*101mm
size 32 core 420*320*132mm



Workshop prodution lines

12 Cores 8 Cores FTTH Fiber Optic Termination Box / Distribution Box IP65 PLC Spiltter Distribution Box 412 Cores 8 Cores FTTH Fiber Optic Termination Box / Distribution Box IP65 PLC Spiltter Distribution Box 512 Cores 8 Cores FTTH Fiber Optic Termination Box / Distribution Box IP65 PLC Spiltter Distribution Box 612 Cores 8 Cores FTTH Fiber Optic Termination Box / Distribution Box IP65 PLC Spiltter Distribution Box 7
