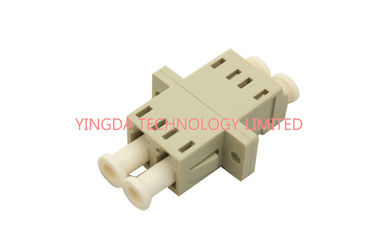

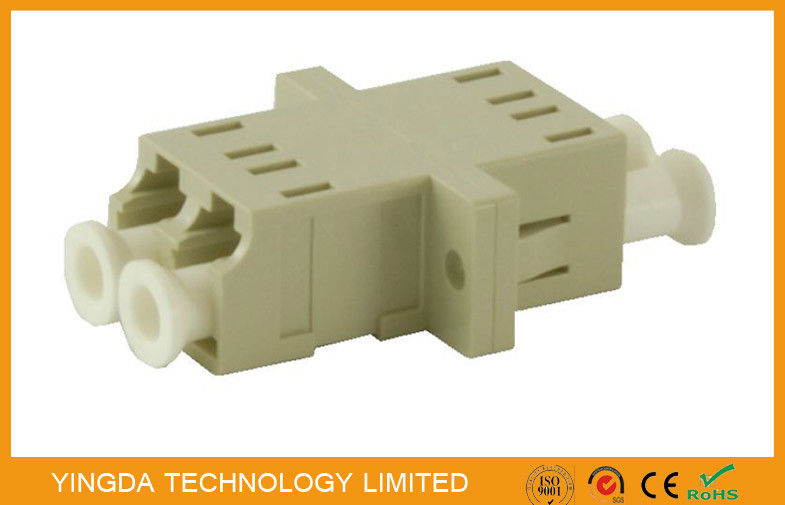

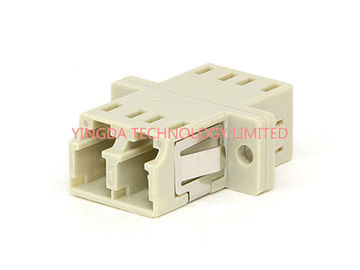

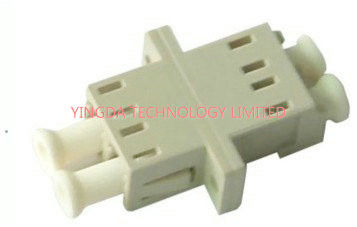

LC Multimode Fiber Optic Adapter Coupler Duplex Ceramic Ferrule , LC Fiber Adaptor
বিনামূল্যে নমুনা এবং কুপন জন্য আমার সাথে যোগাযোগ করুন.
হোয়াটসঅ্যাপ:0086 18588475571
wechat: 0086 18588475571
স্কাইপ: sales10@aixton.com
আপনার কোন উদ্বেগ থাকলে, আমরা 24-ঘন্টা অনলাইন সহায়তা প্রদান করি।
xFiber count | duplex | connector material | plastic |
---|---|---|---|
adapter color | beige | sleeve material | ceramic |
fiber type | mulitmode 50/125um | polish mode | PC |
working temperature | -40 ~ +80 °C | wavelength | 850nm |
appliction | adapter panel, LGX panel, rack mount panel | ||
লক্ষণীয় করা | fiber optic coupler,fiber optic adaptor |
LC Multimode Adapter Coupler Duplex Ceramic Ferrule, LC Fiber Adaptor
Fiber Optic Adapter (coupler), is connector during optical fiber transmission, both ends can be
inserted into the different optical fiber connector such as FC, SC, ST, LC, MTRJ, MPO, E2000
to make them interchange,and widely used in optical optical distribution frame (ODF), optical
Fiber communication equipment, instruments, etc., superior performance, stable and reliable.
Some call fiber optic adapter as optical fiber connectors, in fast,its two different things.
Adapter Structure
Features
- Conforms to Telcordia GR-326-CORE standard
- Conforms to YD/T-1272.3 standard
- Good interchangeability
- Low insertion loss
- Plug connection, easy and fast to install or uninstall
Application
- CATV network, FTTH, Telecommunication,etc
Specification
Item |
SM |
|
|
MM |
PC |
UPC |
APC |
||
Ferrule type |
Convex spherical |
big chamfer or step |
Convex spherical |
|
Ferrule ID (um) |
125 |
127 |
||
Main body material |
PBT or ABS |
|||
Connector type(mm) |
0.9/2.0/3.0mm, simplex, duplex |
|||
Operating temperature (°C) |
-40 ~+85 |
|||
Storage temperature (°C) |
-40 ~+85 |
Order information
- Connector type: SC, LC, MU, E2000, MT-RJ, FC, ST, DIN, D4, FDDI, SMA, etc
- Connector color: beige, blue, green, aqua, purple
- Fiber type: SM, OM1, OM2, OM3, OM4
- Type: simplex, duplex
- Polish: UPC PC APC SPC
