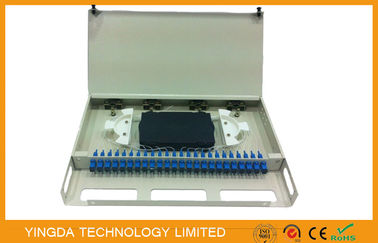

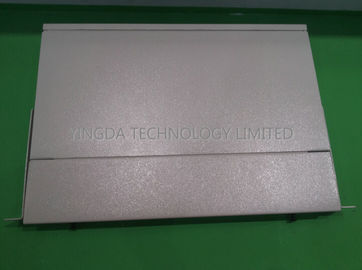

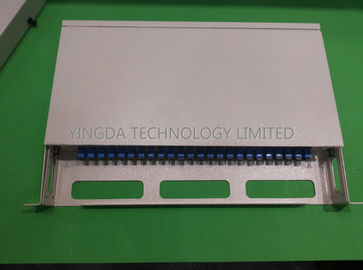

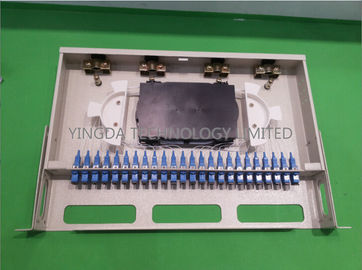

SC Simplex 24 Port Fiber Patch Panel For FTTH FTTX FTTB ODN PON Network
বিনামূল্যে নমুনা এবং কুপন জন্য আমার সাথে যোগাযোগ করুন.
হোয়াটসঅ্যাপ:0086 18588475571
wechat: 0086 18588475571
স্কাইপ: sales10@aixton.com
আপনার কোন উদ্বেগ থাকলে, আমরা 24-ঘন্টা অনলাইন সহায়তা প্রদান করি।
xmaterial | cold rolled steel | color | black |
---|---|---|---|
capacity | 24 fibers / Cores | adapter | SC simplex |
cable ports | 4 pcs | application | FTTH FTTX FTTB ODN PON network |
dimension | 430*250*1U | thickness | 1.0mm |
fiber type | singlemode | pigtail | 12 Cores pigtail SC SM 1.5M 0.9mm |
লক্ষণীয় করা | rack mount odf,optical distribution frame |
12 Ports SC FC Rack Mount Patch Panel, 24 Port Fiber Optic Patch Panel 19 Inch
19" Standard rack mount Fiber optic patch panel are the auxiliary equipment for terminal wiring in
optical fiber transmission communication network, which is suitable for indoor optical cable splice
directly and branch connection, and protective the fiber.
Features
- Applicable in the termination and 19'' standard structure
-
Dummy drawer optical fiber terminal box
- rack mount in optical distribution frame ODF
- Suitable for FC,SC,ST,LC,E2000 adapters
- Cold rolled steel sheet, with electrostatic spraying
- Box size: 430*300*1U
- max capacity; 48Cores 1U SC Duplex
-
Artistic appearance,easy for pasting signs.
Patch Panel Structure
Include 3 parts: box body, internal components, optical fiber connector protector.
1. Box body shell
convenient to open and install, have high voltage grounding device for the metal components.
2. Internal components mainly 3 items:
A. support: the internal structure body, used for the internal support;
B. Splice tray: to store optical fiber connector, protection pieces and the remaining fiber,
the remaining optical fiber length≥1.6m, bend radius≥37.5mm, also have remark to identify the fiber;
C.: fixed device: to fix the optical cable sheath, strengthen member and wiring pigtail.
Protection parts of fiber optic connectors: sleeve and cable rubber gland
Specification
Type |
Dimension (mm) |
Max capacity (core) |
Carton size(mm) |
Qty/ carton (pc) |
G.W (kg) |
GPRF-1U-SC24 |
430*300*1U |
24 |
485*420*350 |
5 |
25 |
GPRF-1U-FC24 |
430*300*1U |
24 |
|||
GPRF-1U-2SC12 |
430*300*1U |
24 |
|||
GPRF-1U-2SC24 |
430*300*1U |
48 |
Environmental requirements:
Not suitable outdoor use, if need to use, should take protective measures.
Working temperature: -25 to +40 °C
Storage temperature: -25 to +55 °C
Relative humidity: ≤85% (30°C)
Atmospheric pressure: 70 ~ 106kPa
Service life: 20 years
Material properties
Fiber Optic Patch panel materials is corrosion resistance, stable physical and chemical properties;
all material must be compatible, and is compatible with optical cable sheath and wiring pigtail sheath.
To prevent corrosion and other electrical damage, these materials must be compatible with the other
equipment used in the patch panel
1. If the patch panel use engineering plastics, its combustion performance shall be in accordance
with A GB/T5169.7 test, the test last for 30s.
2. optical fiber connector enhancement protector use materials and hot melt temperature filler shall
be not less than 120 °C, thermal softening temperature shall be not less than 90 °C, can be used in
a 25 ~+40°C temperature.
3. all materials should be non-toxic, non corrosive, on human health and other equipment element
side effects.
The appearance shall complete shape, no burr, no bubbles, no cracks and voids, warping, impurity
defects. All the background color should be uniformly continuous. Beautiful appearance and
convenient construction, low attenuation loss, reasonable structure, reinforced core is fixed in
the terminal box, the sheath has ground wire, suitable for fiber optic ribbon cable and indoor cable.
Unique design,19 inch rack or wall mount.
Mechanical properties
Tensile strength:should withstand axial tensile strength not less than 500N between cable terminal
box and the cable, and not less than 5N between wiring pigtail and terminal box.
Compression test: cable terminal box each should be able to withstand the vertical static pressure
not less than 200N.
Twist test : cable terminal box should be able to withstand the torsion angle.
Electrical properties
Fiber optic cable box metal component and cable metal strengthening core, cable metal components and the ground insulation resistance
insulation resistance:
should be no less than 2*104M ohm, test voltage:500V (DC).
voltage strength:
no breakdown, no arc phenomenon at 15Kv DC under 1min, no breakdown, no arc phenomenon.
