ফাইবার অপটিক অ্যাডাপ্টার
Created with Pixso. Metal SM SX Hybird Fiber Optic Adapter / Telecom Network Optical Fiber FC/ST Adapter

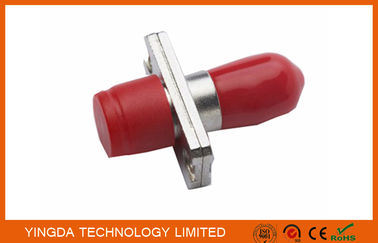

Metal SM SX Hybird Fiber Optic Adapter / Telecom Network Optical Fiber FC/ST Adapter

ব্র্যান্ড নাম: YINGDA
মডেল নম্বর: AD-FC/ST-SX-M
MOQ: 100 PCS
মূল্য: 0.04USD-2.15USD
বিতরণ সময়: 3 days
অর্থ প্রদানের শর্তাবলী: T/T or western Union
বিস্তারিত তথ্য
উৎপত্তি স্থল:
চীন
সাক্ষ্যদান:
ISO,SGS
material:
Metal
dust cap color:
red
type:
hybrid adapter
weight:
12g
Fiber type:
single-mode, multimode
sleeve material:
ceramic
পণ্যের নাম:
এমপিও থেকে এমপিও কেবল,এমপিও থেকে এলসি কেবল, এমটিপি অপটিক্যাল সংযোগকারী,এমটিপি ক্যাসেট
Packaging Details:
1 pc / bag or 10 pc/ blister box
Supply Ability:
50,000pcs per month
বিশেষভাবে তুলে ধরা:

fiber optic coupler

,

bare fiber adapter

পণ্যের বর্ণনা

FC/ST Fiber Optic Adapter Metal SM SX, FC / ST Hybird Adapter Fiber Optic​





Description:

Fiber adaptor is one kind of fiber flange. It is mainly used for interconnecting two fiber connectors.

Both UPC and APC polishing mode are available.For interconnecting various connectors, fiber

connector can be divided into 2 kinds, mating sleeve and hybrid adaptor.



Hybrid adapter can connect different types of connectors on both ends,and provides APC end

face connection. Duplex or multiple adapter can improve the density of installation, save a space.



Features

  1. Low insertion loss value
  2. Choice of housing and sleeve materials
  3. Stable capability and high reliability
  4. Excellent mechanical
  5. Choice of housing and sleeve materials
  6. Stable capability and high reliability
  7. Excellent mechanical capability
  8. Variety of colors



Specification



Item

Value

Insertion loss

≤0.2dB

Insert-pull test

1000 times

Repeat ability

≤0.1

Tensile strength

≥10kg

Operating temperature

-40°C~85°C

Sleeve materials

Ceramic



Application

  • CATV
  • Telecom networks
  • Optical test equipments
  • Local area networks
  • Wide area networks
  • Data processing networks



Metal SM SX  Hybird Fiber Optic Adapter / Telecom Network Optical Fiber FC/ST Adapter 0Metal SM SX  Hybird Fiber Optic Adapter / Telecom Network Optical Fiber FC/ST Adapter 1

Metal SM SX  Hybird Fiber Optic Adapter / Telecom Network Optical Fiber FC/ST Adapter 2Metal SM SX  Hybird Fiber Optic Adapter / Telecom Network Optical Fiber FC/ST Adapter 3
