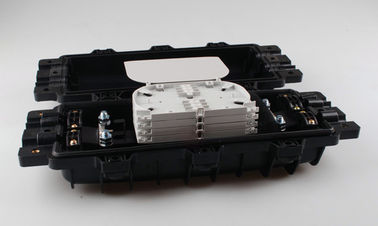

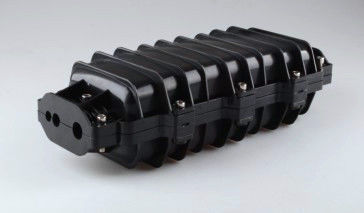

3 3 আউট ফাইবার অপটিক splice বন্ধ, লাইন ভূগর্ভস্থ আউটডোর ফাইবার ঘের মধ্যে পিসি
বিনামূল্যে নমুনা এবং কুপন জন্য আমার সাথে যোগাযোগ করুন.
হোয়াটসঅ্যাপ:0086 18588475571
wechat: 0086 18588475571
স্কাইপ: sales10@aixton.com
আপনার কোন উদ্বেগ থাকলে, আমরা 24-ঘন্টা অনলাইন সহায়তা প্রদান করি।
xধারণক্ষমতা | বঞ্চি: 96 (কোরের); রিবনে: 144 (কোরের) | উপাদান | পিসি |
---|---|---|---|
কেবল পোর্ট | 3in 3out | রঙ | কালো |
সীল | রাবারের সীলমোহর | বিচ্ছিন্ন ট্রে | 4pcs |
মাত্রা | 430x180x125 (মিমি) | তারের ব্যাস | Φ8-Φ20 (মিমি) |
লক্ষণীয় করা | fiber optic splice enclosure,outdoor splice box |

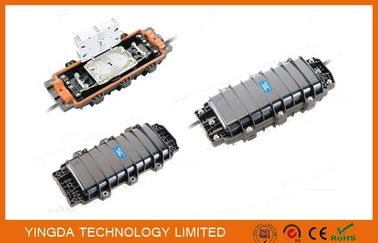

Inline Splice Enclosure Distribution Box, 3in 3out PC In-Line Underground
Splice Closure H010
Description
This Installation Manual is suit for the Fiber Optic Splice Closure (Hereafter abbreviated as FOSC),
as the guidance of proper installation.
The scope of application is: aerial, underground, wall-mounting, duct-mounting, hand hole-mounting.
The ambient temperature ranges from -40℃ to +65℃.
Features
- Easy to re-enter and repair
- 3pcs cable entry and 3pcs cable exit ports
- Pressure testing valve and earth deriving device
- Intergrated seal, air tight and water proof
- RoHS compliant
- Can be used in through, branch or mid span splice locations
Application: aerial, underground duct or direct burial applications
Specification
Outside dimension (LxWxH) |
430x180x125 (mm) |
Weight (excluding outside box) |
2500g-2825g |
Number of inlet/outlet ports |
3 (pieces) on each side (total 6 pieces) |
Diameter of fiber cable |
Φ8—Φ20 (mm) |
Capacity of FOSC |
Bunchy: 12—96 (Cores) Ribbon: max. 144(Cores) |

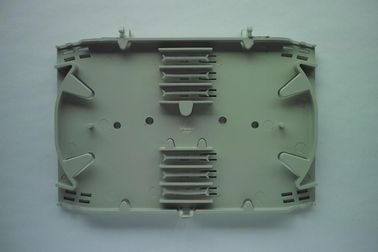

Splice tray capacity |
Bunchy:12,24(cores) Ribbon:3 (pieces) |
Specification
Name of accessories |
Usage |
Heat shrinkable protective sleeve |
Protecting fiber splices |
Nylon tie |
Fixing fiber with protective coat |
Insulation tape |
Enlarging diameter of fiber cable for easy fixing |
Seal tape |
Enlarging diameter of fiber cable which fits in with seal fitting |
Hanging hook |
For aerial use |
Earthing wire |
Putting through between earthing devices |
Abrasive cloth |
Scratching fiber cable |
Labeling paper |
Labeling fiber |
Special wrench |
Fixing bolts, tightening nut of reinforced core |
Measuring paper |
To measure circle, of which its diameter is enlarged with seal tape |
Buffer tube
|
Hitched to fibers and fixed with FOST, managing buffer |
Desiccant |
Put into FOSC before sealing for desiccating air. |
Package information
- 8pcs/carton
- Carton size:74*40*45cm
- G.W.:24KG
