24 Cores Fiber Optic Distribution Box For Uncut Cable , Mid Span Access FTTH Fibre Splice Box
বিনামূল্যে নমুনা এবং কুপন জন্য আমার সাথে যোগাযোগ করুন.
হোয়াটসঅ্যাপ:0086 18588475571
wechat: 0086 18588475571
স্কাইপ: sales10@aixton.com
আপনার কোন উদ্বেগ থাকলে, আমরা 24-ঘন্টা অনলাইন সহায়তা প্রদান করি।
xCapacity | 24fibers | Cable ports | 2pcs |
---|---|---|---|
Dimension | 320*240*100mm | cable diameter | 2*3.0mm drop cable or indoor cable |
Material | PC+ABS | Color | white/gray |
Application | indoor and outdoor | outports | 24pcs drop cable |
special | un-cut cable go through the box | adapter capacity | 24pcs SC |
লক্ষণীয় করা | fiber optic closure,optical distribution box |
24 Cores Fiber Optic Termination Box for Uncut Cable, Mid Span Access FTTH Fibre Splice Box 24 Ports PC+ABS White
Model: FDB0224C
Fiber Termination Box provides a high density wall mounted solution for next generation networks,
which aims to provide and manage maximum numbers of fiber termination in a limited space.
It is normally installed in the way of wall mounting or pole mounting.
Features:
1. Water-proof design with IP65 Protection level
2. Integrated with splice cassette and cable management system
3. Manage fibers in a reasonable fiber radius condition
4. Easy to maintain and extend the capacity
5. Fiber bend radius control more than 40mm
6. Suitable for the fusion splice or mechanical splice
7. 24 ports cable entrance for FTTH drop cable
Specification
Model |
Size(A*B*C) | Adapter | FTTH drop cable | Max Capacity | Installation Size(A*B) |
FDB0224C | 320*240*100mm | SCx24;LCx24 Duplex | 24ports | 24fibers | 190*298mm |
Packaging information
Model | CTN qty | N.w/ctn | G.w./ctn | Ctn size |
FDB0224C | 10pcs | 15.1kgs | 17.5kgs | 60*36*63cm |
More pictures
overview fig.1
the box is total enclosure with keys,flip design,white color or gray color.
internal view fig. 2
the box with tray insdie, the upper layer is for distribution, and the downward is for fusion splice.
max. capacity: 24fibers fusion with protetive sleeve. it has enough redardant fiber storage space.
distribution layer view fig. 3
the upper layer can use LGX modular for PLC splitter 1x1:16, or 2x1:8 plc splitter

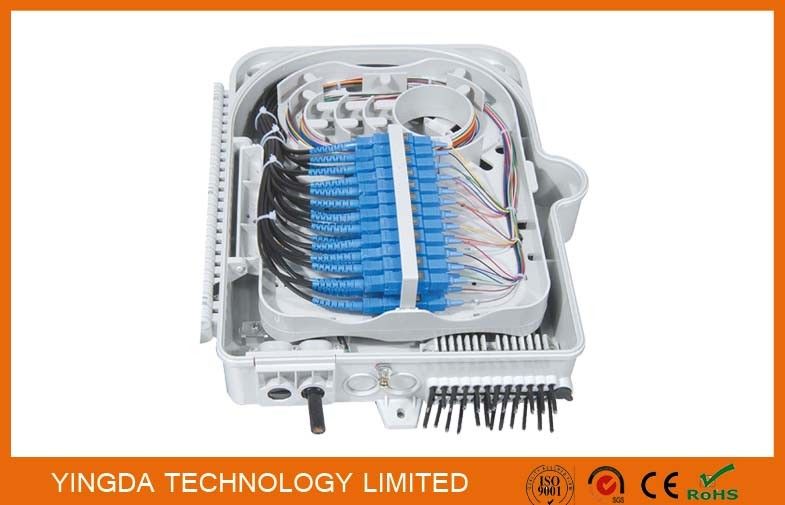

intenral view fig. 4
the upper layer can use adapter panel to hold max. 24pcs SC adpaters in 2lines
the box cable ports: 2 inlets, 24 outlets. The inlets can be cable gland IP65, or use mid-span access, then it can use for uncut cable, which ease cable installation and save time.
Termination Box Technical Parameters
Work temperature | -40~+85°C |
Relative humidity | ≤85% (+30°C) |
Atmospheric pressure | 70kPa-106kPa |
Insertion loss | ≤0.2dB |
Upc return loss | ≥50dB |
APC return loss | ≥60dB |
Insert and pull out life | ≥1000times |
Insulation | The grounding device is insulated with the termination box, IR≥1000m Ω/500V(direct current) |
Withstand voltage | Between the grounding device and the box body, the withstand voltage is over 3000V/Min, no breakdown and flashover. U≥3000V (direct current) |
