Chasis Completes LGX Modules With Splitters1x8 SC/Apc Adaptors Rack Mount Metal





This LGX splitter is design in a LGX module which is used for LGX chassis application. It is also terminated

with adapters and according to different requirements, LGX modules can be inserted into the chassis.

In addition, LGX splitter can also installed in rack mount chassis.



Chassis structure

Chasis Completes LGX Modules With Splitters1x8 SC/Apc Adaptors Rack Mount Metal 0

Chassis specification



Model Dimension Adapter capacity Max PLC splitter quantity Material Color LGX size
LGX-1U 430*250*130mm 144pcs SC 16 pcs x 1:8 splitter (LGX slot) Cold rolled steel white 130*100*25mm



1X8 PLC splitter Blockless Type

Chasis Completes LGX Modules With Splitters1x8 SC/Apc Adaptors Rack Mount Metal 1

Features:

Ø Low insertion loss, Low PDL and High reliability

Ø High return loss and Good repeatability

Ø Wide wavelength range

Ø Excellent channel-to-channel uniformity



Applications:

Ø LAN, WAN and Metro Networks

Ø FTTH project & FTTX Deployments

Ø CATV System

Ø GPON, EPON

Ø Fiber Optic Test Equipment

Ø Data-base Transmit Broadband Net



Technical specifications



Note: connector loss is excluded.



1X8 series
Item Unit Index
Operating wavelength Nm 1260-1650
Max. Insertion loss P grade dB <10.3
S grade dB <10.5
PDL(polarization dependent loss) dB ≤0.3
Power splitting uniformity dB ≤0.8
Min. Return loss dB ≥55
Directivity dB ≥50
WDL(wavelength dependent loss) dB ≥55
TDL(temperature dependent loss)(-40~+85°C) dB ≤0.5
Optical fiber length m 1.5(±0.1),or customized
Optical fiber type G657A1,or customized
Operating /storage temperature °C -40 ~+85
Fiber color

Input: Original

Output:2*4Color(Blue/Orange/Green/Brown)

Tube Type   Φ0.9mm, Hytrel
Tube Color

Input: White

Output: White

Connector Type

Input: SC/UPC

Output: SC/UPC

Steel tube size Mm 40*4*4
Mini module tube size Mm 60*7*4
LGX size Mm 130*100*25



More pictures



Chasis Completes LGX Modules With Splitters1x8 SC/Apc Adaptors Rack Mount Metal 2

  • This chassis completely can hold 16pieces x 1:8 Splitter mini module 0.9mm in LGX modular box.
  • the LGX box is plastic, the chassis is metal material.
  • the adapter or connector of the splitter output or inpt can be SC or LC, UPC or APC plished.
  • splitter can be: 1x2,1x4,1x6 or 1x8 splitter ratio.
  • this chassis is rack mount 19" with mounting ears.
  • the chassis have cable warpping wires at the front panel. and can be closed totally.
  • the chassis max. hold 144cores SC SIMPLEX.





Chasis Completes LGX Modules With Splitters1x8 SC/Apc Adaptors Rack Mount Metal 3

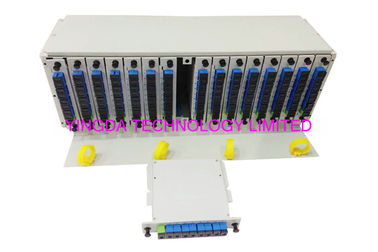

fully load completed view

Chasis Completes LGX Modules With Splitters1x8 SC/Apc Adaptors Rack Mount Metal 4

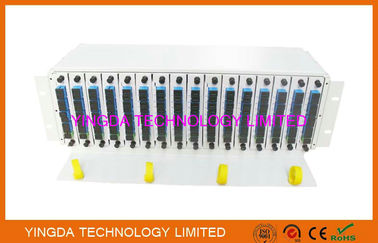

chassis empty side viewChasis Completes LGX Modules With Splitters1x8 SC/Apc Adaptors Rack Mount Metal 5

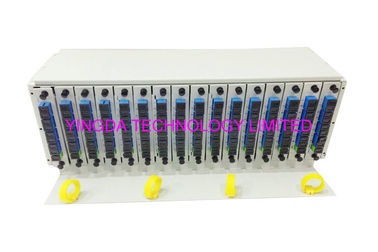

chassis empty side viewChasis Completes LGX Modules With Splitters1x8 SC/Apc Adaptors Rack Mount Metal 6

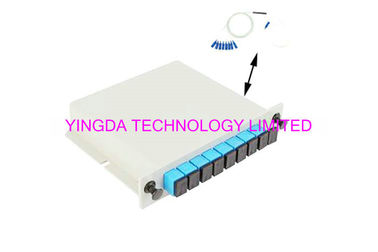

the LGX modular view,size:130*100*25mm, max. hold 1:1x8 splitter, 9pcs SC adapters.Chasis Completes LGX Modules With Splitters1x8 SC/Apc Adaptors Rack Mount Metal 7

the adapter can be SC simplex or LC duplex coupler on the LGX modular ports.
