FTTH Rack Panel LC Quad Adapter , LC MM Optical Fiber Adapter Customized

ব্র্যান্ড নাম: YINGDA
মডেল নম্বর: AD-LC-MM-Q4
MOQ: 100 pcs
মূল্য: 0.04USD-2.15USD
বিতরণ সময়: 3working days
অর্থ প্রদানের শর্তাবলী: T/T or western Union
বিস্তারিত তথ্য
উৎপত্তি স্থল:
চীন
সাক্ষ্যদান:
ISO,SGS
Fiber count:
4 Core, quad fibers
connector material:
plastic
dustcap color:
beige / grey
sleeve material:
ceramic
fiber type:
mm / multimode
polish mode:
PC
sky window:
can be customized
পণ্যের নাম:
এমপিও থেকে এমপিও কেবল,এমপিও থেকে এলসি কেবল, এমটিপি অপটিক্যাল সংযোগকারী,এমটিপি ক্যাসেট
Packaging Details:
20 pcs / blister box
Supply Ability:
100000pcs/month
বিশেষভাবে তুলে ধরা:

fiber optic coupler

,

bare fiber adapter

পণ্যের বর্ণনা

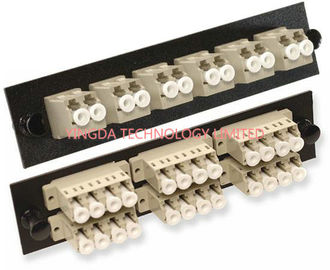

FTTH Rack Adapter Panel LC Quad Adapter, LC MM Optical Fiber Adapter





This coupler provides a solution for extending a current run of fiber optic cabling. This coupler

is constructed from highgrade plastic and has been designed and engineered for durability

and a long life.

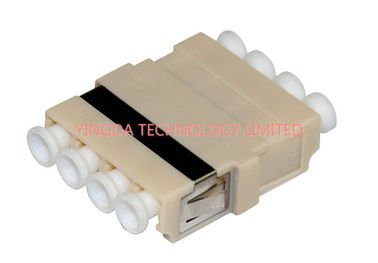

Adapter structure



FTTH Rack Panel LC Quad Adapter , LC MM Optical Fiber Adapter Customized 0



Advantage:

  • Telcordia GR-326, IEC, TIA/EIA Standard compliant.
  • 100% Optical performance inspection.
  • Low Insertion Loss.
  • RoHS Compliance.
  • Customized design and production.



Material List:

  1. Sleeve: Ceramic or PB
  2. Housing: PC , Flammability UL94 V-0
  3. Dust cap: PVC, Flammability UL94 V-0
  4. Clip:s tainless steel





Optical characteristic



Optical Performance



Premium Grade

Standard Grade

Insertion Loss

≤0.1dB

≤0.2dB

Durability

1000 times

1000 times



Environment and Mechanical Properties



Item

Test condition

Conformance

Test result

Vibration

10-55Hz, 1.5mm, 60min

IEC61300-2-1

≤0.2dB

Mating Durability

1000 Mating, clean every 25 mating.

IEC61300-2-2

≤0.2dB

Impact

1.5m, 8 drops

IEC61300-2-6

≤0.2dB

Strength of Coupling Mechanism

40N, 10Min, L=22-28cm

IEC61300-2-12

≤0.2dB

Temperature Cycling

 40ºC to +75ºC, 40 cycles

IEC61300-2-22

≤0.2dB

Temperature humidty cycling

40ºC, 95%, 96Hr

IEC61300-2-21

≤0.2dB

Operating Temperature

 -40ºC to +85ºC



≤0.2dB

Storage Temperature

 -40ºC to +85ºC



≤0.2dB





This adapter have two types; A and B

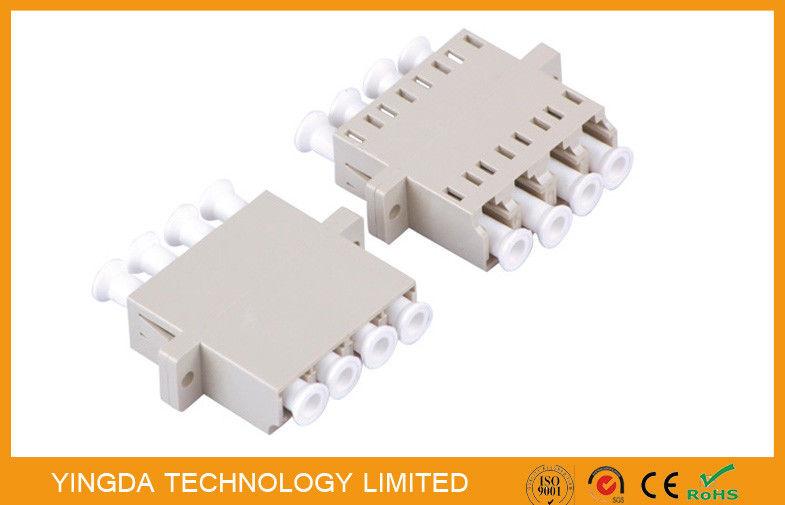

Type A: have sky window like below



FTTH Rack Panel LC Quad Adapter , LC MM Optical Fiber Adapter Customized 1FTTH Rack Panel LC Quad Adapter , LC MM Optical Fiber Adapter Customized 2FTTH Rack Panel LC Quad Adapter , LC MM Optical Fiber Adapter Customized 3




Type B: don't have sky window, the surface is smooth, see below:

FTTH Rack Panel LC Quad Adapter , LC MM Optical Fiber Adapter Customized 4FTTH Rack Panel LC Quad Adapter , LC MM Optical Fiber Adapter Customized 5
