ফাইবার অপটিক অ্যাডাপ্টার
Created with Pixso. FC Square Fiber Optic Adatper Metal In Black Blue Grey For Network Cable

FC Square Fiber Optic Adatper Metal In Black Blue Grey For Network Cable

ব্র্যান্ড নাম: YINGDA
মডেল নম্বর: ADB-FC-SQ
MOQ: 100 PCS
মূল্য: 0.04USD-2.15USD
বিতরণ সময়: 3 days
অর্থ প্রদানের শর্তাবলী: T/T or western Union
বিস্তারিত তথ্য
উৎপত্তি স্থল:
চীন
সাক্ষ্যদান:
ISO,SGS
material:
Metal
color:
blue, gray, black
shape:
round , square
type:
fiber optic bare adapter
weight:
12g
Fiber type:
single-mode
পণ্যের নাম:
এমপিও থেকে এমপিও কেবল,এমপিও থেকে এলসি কেবল, এমটিপি অপটিক্যাল সংযোগকারী,এমটিপি ক্যাসেট
Packaging Details:
1 pc / bag or 10 pc/ blister box
Supply Ability:
50,000pcs per month
বিশেষভাবে তুলে ধরা:

fiber optic adaptor

,

bare fiber adapter

পণ্যের বর্ণনা

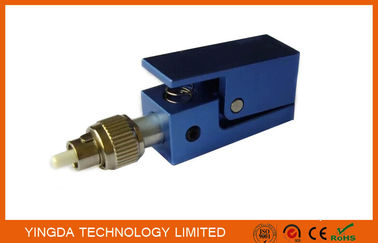

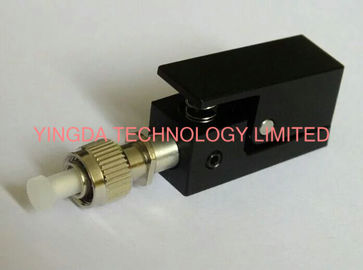

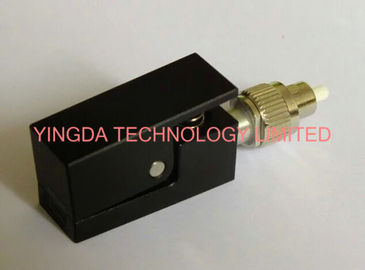

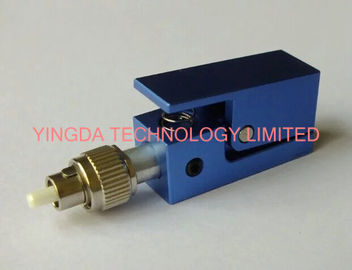

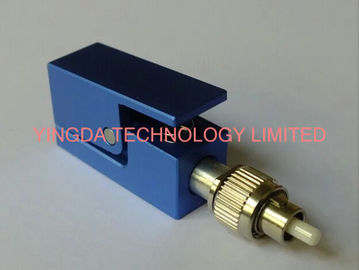

FC Square Bare Fiber Adapter, FC Bare Fiber Optic Adatper Metal Black Blue Grey





Description



Bare Fiber Adapter can link bared optic and light source ,testing equipment, light appearance etc,

and the products used for test appearance and temporary conjunction between fiber optics

extensively (repair fiber optic cable urgently). It have the bare optical fiber inside one side,

the other side is a connector that can plug into the equipment.



Feature

  1. Simplex and quickly interconnect
  2. Low insertion loss
  3. Repeatability and exchangeability good
  4. Stabilize the credibility
  5. Interchangeable connector heads available



Application

  • Testing fiber on the reel
  • Optical fiber through connection test
  • Two-way communication during optical-fiber cable installation and maintenance
  • First-aid repair,temporary connection and testing on optical fiber project.



Specification



Shape

Square / Round

Connector

FC/PC, SC/PC, ST/PC, LC/PC

Applicable fiber

SM & MM

Ferrule diameter

123-127 um

Ferrule outder diameter

2.499mm 1.249mm

Cable diameter

250um & 900um

Insertion Loss

≤0.20dB

Repeat ability

<0.2dB

Tensile strength

100g

Plug time

 >1000 times

Operating Temperature

-40 ~+85℃

Size

Length:40mm, diameter:30mm



FC Square Fiber Optic Adatper Metal In Black Blue Grey For Network Cable 0FC Square Fiber Optic Adatper Metal In Black Blue Grey For Network Cable 1
