SM 9/125 um Fiber Optic Adapter LC / APC , Optical Fibre Adapter Green Quad 4 Way

উৎপত্তি স্থল চীন
পরিচিতিমুলক নাম YINGDA
সাক্ষ্যদান ISO,SGS
মডেল নম্বার AD-LCA-Q4
ন্যূনতম চাহিদার পরিমাণ 500pcs
মূল্য Negotiable
প্যাকেজিং বিবরণ 20 pc / box
ডেলিভারি সময় 5 working days
পরিশোধের শর্ত T/T or western Union
যোগানের ক্ষমতা 200km/ month

বিনামূল্যে নমুনা এবং কুপন জন্য আমার সাথে যোগাযোগ করুন.

হোয়াটসঅ্যাপ:0086 18588475571

wechat: 0086 18588475571

স্কাইপ: sales10@aixton.com

আপনার কোন উদ্বেগ থাকলে, আমরা 24-ঘন্টা অনলাইন সহায়তা প্রদান করি।

x
পণ্যের বিবরণ
Fiber count 4 fiber / quad connector material plastic
adapter color green sleeve material ceramic
fiber type SM 9/125um polish mode APC
working temperature -40 ~ +80 °C wavelength 1310nm, 1550nm
appliction ODF adapter panel, LGX panel, rack mount panel
লক্ষণীয় করা

fiber optic coupler

,

bare fiber adapter

একটি বার্তা রেখে যান
পণ্যের বর্ণনা

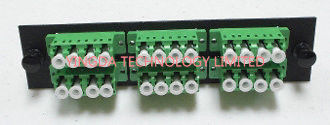

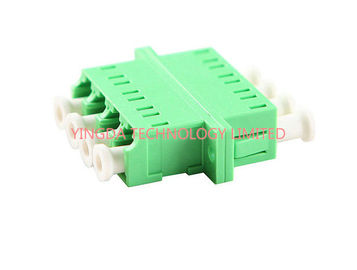

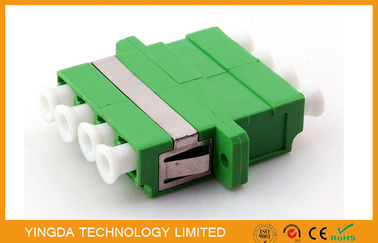

LC Quad Fiber Optic Adapter, LC / APC Optical Fibre Adapter Green Quad 4 Way





Institute of LC type connector is a famous BELL (BELL) research and development, using the

convenient operation modular jack (RJ) latch mechanism is made. The pin and the size of the

sleeve is adopted by the general SC, FC, half size of 1.25 MM. This can increase the density

of optical fiber connector in the optical fiber distribution frame. At present, in terms of single-

mode SFF, LC type of connector has occupied the dominant position, actual application in the

field of multimode is also growing rapidly.



Fiber Optic Adapter (coupler), is connector during optical fiber transmission, both ends can be

 inserted into the different optical fiber connector such as FC, SC, ST, LC, MTRJ, MPO, E2000

to make them interchange,and widely used in optical optical distribution frame (ODF), optical

Fiber communication equipment, instruments, etc., superior performance, stable and reliable.

Some call fiber optic adapter as optical fiber connectors, in fast,its two different things.





Features

  1. Conforms to Telcordia GR-326-CORE standard
  2. Conforms to YD/T-1272.3 standard
  3. Good interchangeability
  4. Low insertion loss
  5. Plug connection, easy and fast to install or uninstall
  6. 100% Test in factory
  7. 1 year guarantee



Application

  • CATV network
  •  FTTH
  • Telecommunication,etc



Specification



Item

SM





MM

PC

UPC

APC

Ferrule type

Convex spherical

big chamfer or step

Convex spherical

Ferrule ID (um)

125

127

Main body material

PBT or ABS

Connector type(mm)

0.9/2.0/3.0mm, simplex, duplex

Operating temperature (°C)

-40 ~+85

Storage temperature (°C)

-40 ~+85





Order information



  1. Connector type: SC, LC, MU, E2000, MT-RJ, FC, ST, DIN, D4, FDDI, SMA, etc
  2. Connector color: beige, blue, green, aqua, purple
  3. Fiber type: SM, OM1, OM2, OM3, OM4
  4. Type: simplex, duplex
  5. Polish: UPC PC APC SPC
